BK Full Size Cyclic Servo Model 7003HV – Kyle Stacy Edition

Description

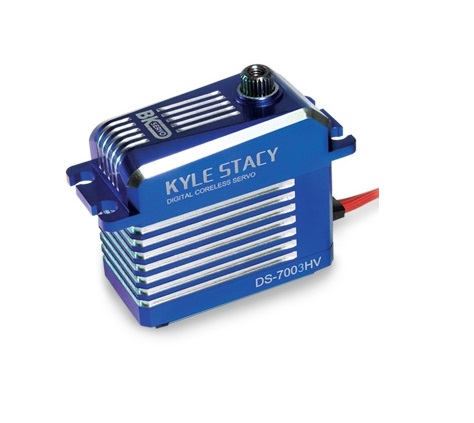

Full Size Servo, Kyle Stacy Edition (KSE) DS-7003HV

This coreless cyclic servo offers blazing fast speed, incredible amounts of torque all packed into a new sleek, thermal efficient case design!

Developed by Bert Kammerer and approved by Kyle Stacy!

Specs:
Operation Voltage: 6V – 8.4V
Weight: 65g (2.29 Oz)
Dimensions: 20mm x 40mm x 37mm
Frequency: 1520us/333 hz
Gear Type: Metal
Motor Type: Coreless

Torque:
19.5 kg/cm (265.94 oz/in) @ 6V
22.3 kg/cm (309.68 oz/in) @ 7.4V
26.8 kg/cm (372.18 oz/in) @ 8.4V

Speed:
0.085 sec/60 @ 6V
0.078 sec/60 @ 7.4V
0.065 sec/60 @ 8.4V
