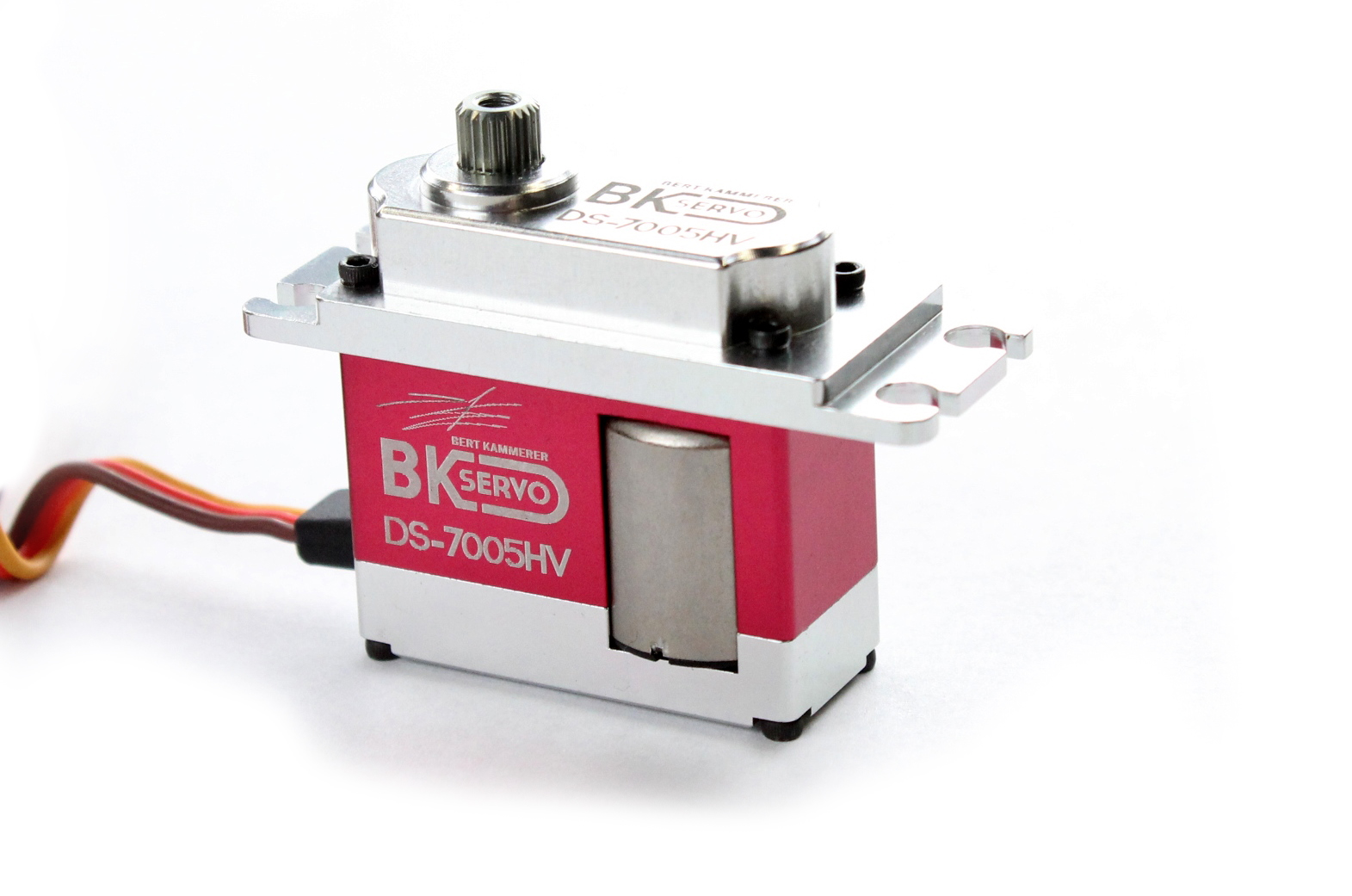

BK Digital Full Size Tail Servo Model 7005HV

Description

Specifications:
Operation Voltage: 6V – 8.4V
Weight: 50g (1.7 Oz)
Dimensions: 15x36x35.5 mm
Frequency: 760us/333 hz
Gear Type: Metal
Motor Type: Coreless

Torque:
8.4 kg/cm (116.7 oz/in) @ 6V
9.6 kg/cm (133.3 oz/in) @ 7.4V
10.6 kg/cm (147.2 oz/in) @ 8.4V

Speed:
0.035 sec/60 @ 6V
0.032 sec/60 @ 7.4V
0.03 sec/60 @ 8.4V

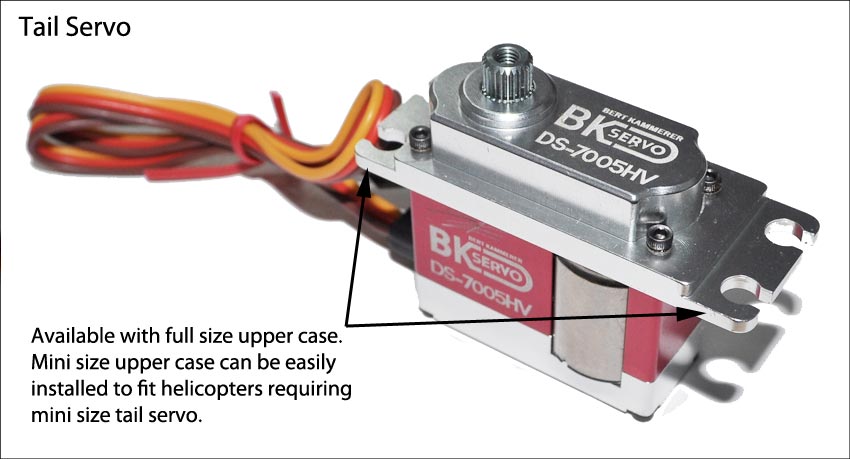

Note: A mini size upper case for this servo is available for helicopters requiring mini size tail servos. Sold separately. Please contact Zen staff should you require the mini size upper case.
