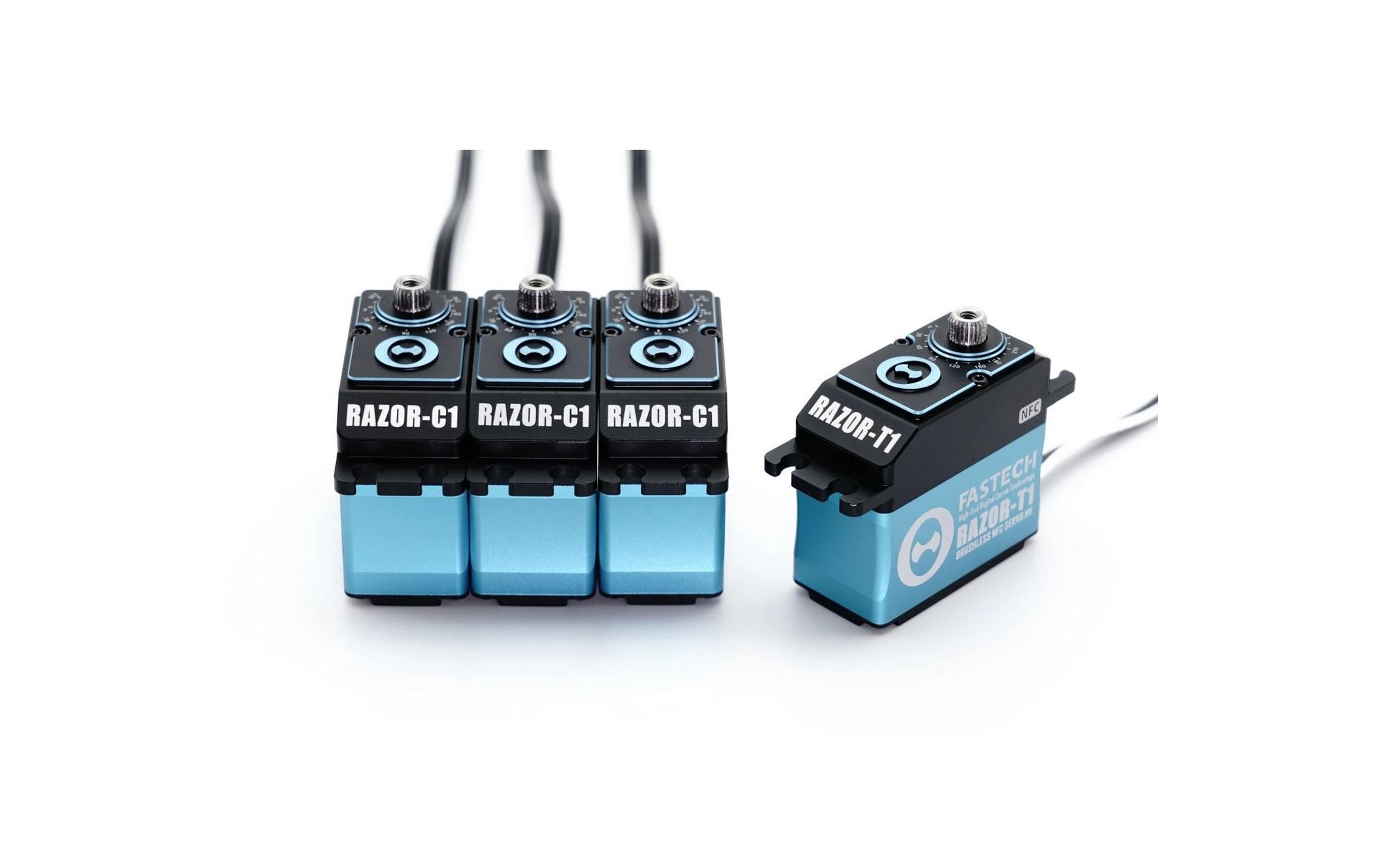

FASTECH Brushless HV Razor Combo Set

Description

FASTECH Brushless HV Cyclic Servo

Fastech proudly introduces this unique high-end servo which is the first of it’s kind to include an easy to use NFC parameter tuning function. Designed with extreme performance for strength, speed and accuracy in mind.

Important: DO NOT read or write to the servo via NFC while servo is powered on. Servo must be UNPOWERED for correct NFC tuning and adjustments.

Android App download   – Click Here –

Specifications HV Razor C1 Cyclic Servo:

• Dimensions: 38mm x 20mm x 40mm
• Weight: 73g
• Sanwa SSR Compatible
• Steel Gear
• Super Heavy Duty
• Ultra Quiet Energy Saving
• Neutral Pulse Width: 760us/1520us (adjustable)
• Frequency range:  50-400Hz

Default Operating Speeds:

• 5.0V 0.108s/60

• 6.0V 0.084s/60

• 7.4V 0.071s/60

• 8.4V 0.060s/60


Default Dynamic Torque:

• 23 kg/cm @ 5v

• 27 kg/cm @6v

• 34 kg/cm @ 7.4v

•  36 kg/cm @ 8v


Specifications HV Razor T1 Tail Servo :

• Dimensions: 38mm x 20mm x 40mm
• Weight: 73g
• Sanwa SSR Compatible
• Steel Gear
• Super Heavy Duty
• Ultra Quiet Energy Saving
• Neutral Pulse Width: 760us/1520us (adjustable)
• Frequency range:  50-400Hz

Default Operating Speeds:

• 5.0V 0.062s/60

• 6.0V 0.054s/60

• 7.4V 0.047s/60

• 8.4V 0.042s/60


Default Dynamic Torque:

• 17 kg/cm @ 5v

• 18 kg/cm @6v

• 19 kg/cm @ 7.4v

•  20 kg/cm @ 8v

Download the NFC app (android devices only) here.
