Description
Suitable for: X3 Series

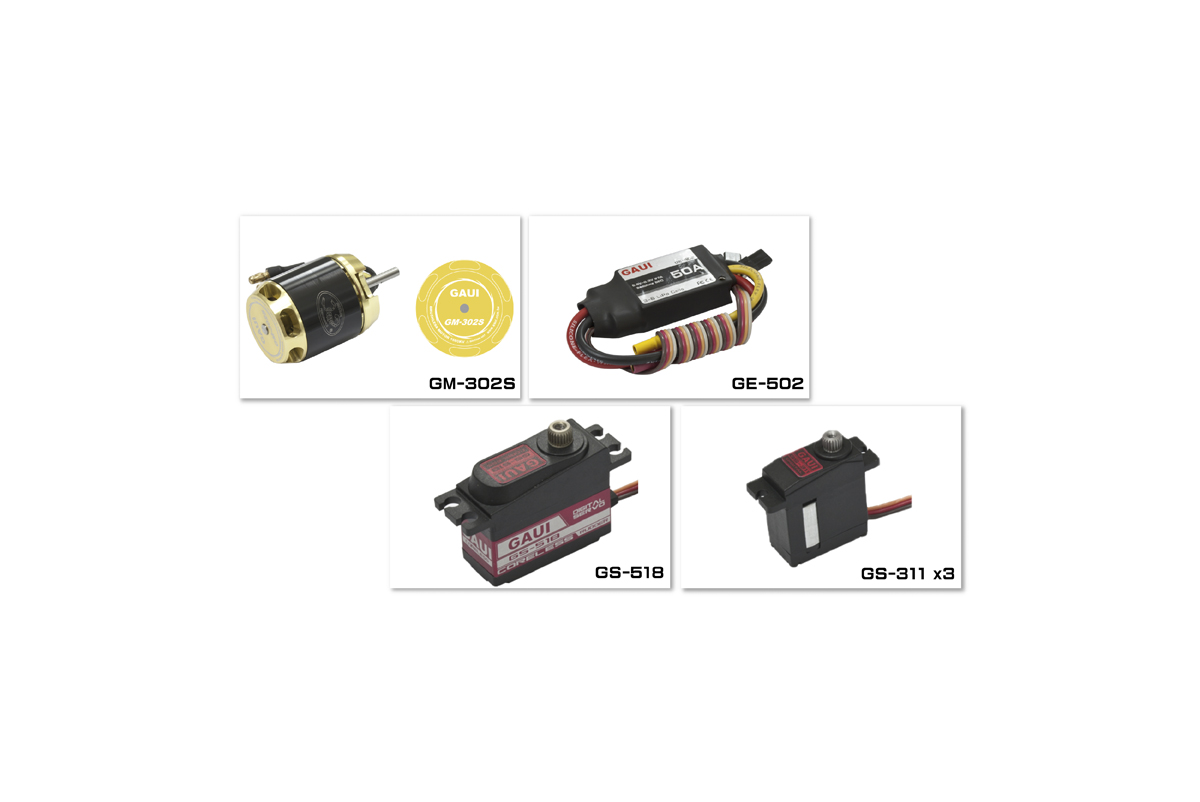

Content:
GM-302S Brushless Motor with connector(Ø3.5mm) x1
GE-502 50A ESC(SBEC) x1
GS-518 Coreless metal gear Mini Servo x1
GS-311 Metal Gear Digital Servo x3
Motor
Model: GM-302S
Stator Diameter: 25.0 mm (0.98 in)
Stator Thickness: 20.0 mm (0.79 in)
No. of Stator Arms: 12
Magnet Poles: 10
Motor Winding: 9 Turn Delta
Motor Wire: 10-Strand 0.25mm
Motor Kv: 1580Kv RPM/Volt
No-Load Current (IO/10V): 1.77 Amps
Motor Resistance (Rm): 0.032 Ohms
Max Continuous Current: 34 Amps
Max Continuous Power: 715 Watts
Weight: 104 Grams (3.64 oz)
Outside Diameter: 31.5 mm (1.24 in)
Shaft Diameter: 3.5 mm (0.14 in)
Body Length: 39.6 mm (1.56 in)
Overall Shaft Length: 57.5 mm (2.26 in)
Max Lipo Cell: 6s
Max Peak Current: 45A (2 seconds)
Max Peak Power: 945 Watts (2 seconds)
Motor Timing: 5deg
Drive Frequency: 8kHz
ESC
Model: GUES GE-502
Class: 50A
Cont. Current: 50A
Peak Current(10sec): 75A
BEC Model: By Switch
BEC Output: 5.5V,5.9V,6.7V,7.3V,8.3V,@7A
Lipo:3-6S
NiCd/NiMH: 9-18S
Programable:YES
Model: GS-311 x 3
Operating Temperature Range:-10 ℃~+50℃
Operating Voltage Range:4.8V~6V
Operating speed (at no load):
0.09 sec/60°
0.075 sec/60°
Stall torque (at locked):
1.8 Kg/cm (4.8V)
2.4 Kg/cm (6.0V)
Stall current (at locked):1100 mA/1500 mA
Limit angle:220°±10°
Weight(without servo horn):15g ± 0.2
Working Frequence:1520μs/333hz
Maximum travel:Approx 150°
(when700→2300 μsec)
Tail Servo
Model: GS-518 x 1
Operating Temperature Range:-10 ℃~+50℃
Operating Voltage Range:4.8V～7.2V
Operating speed (at no load):
0.09 sec/60°
0.07 sec/60°
Stall torque (at locked):
1.9 Kg/cm (4.8V)
2.5 Kg/cm (6.0V)
Stall current (at locked):800 mA/1000 mA
Limit angle:210°±10°
Weight(without servo horn):25.9g ± 1
Working Frequence:1520μs/333hz
Maximum travel:Approx 154°
(when800→2200 μsec)
