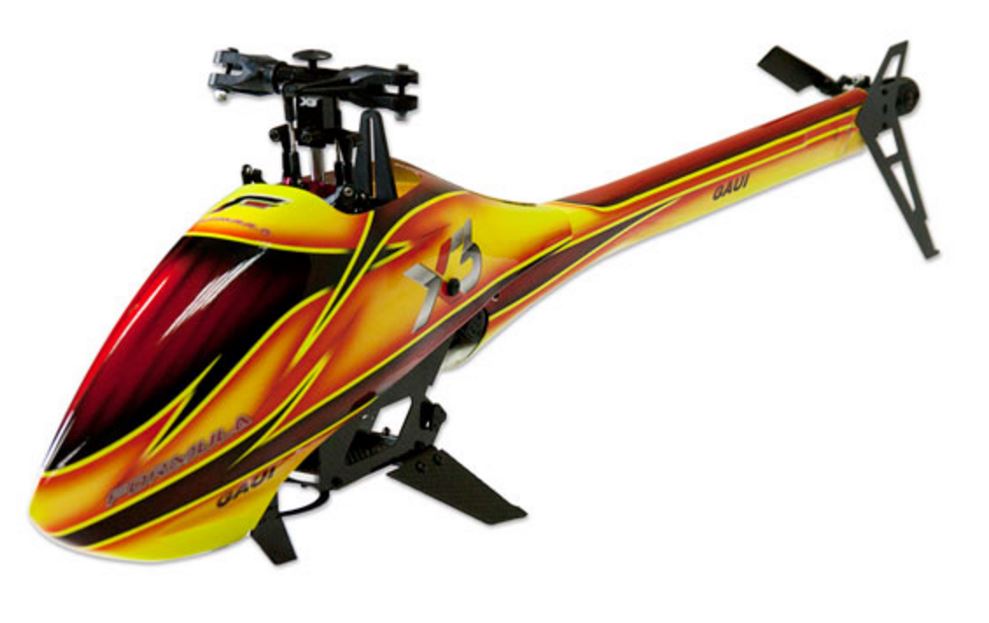

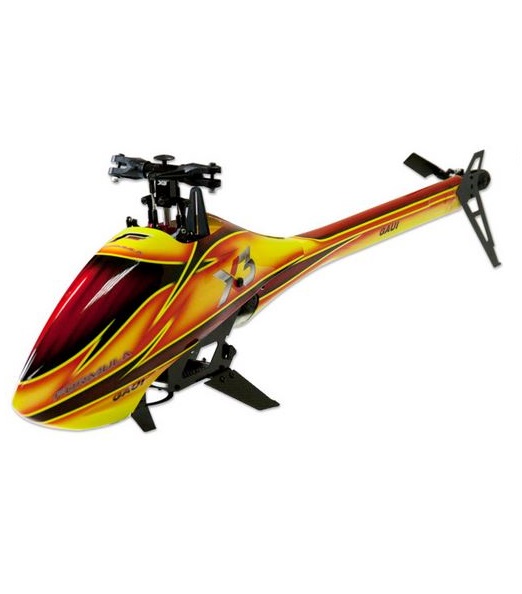

GAUI X3L Kit (2-bladed version)

Description

GAUI X3L Basic Kit (2-bladed version)

Note: Blades not included.

Content:

X3L Basic Kit (385L) x 1 set

Specifications:

●Overall Length (with Canopy): 709mm
●Main rotor diameter: 808mm (Main Blades 360mm) 858mm (Main Blades 385mm)
●Main blade length: 360~385 mm
●Overall Height: 212mm
●Overall Width: 87.8mm
●Tail Blade Length: 62 mm
●Tail Rotation Diameter: 164mm
●ESC: Minimum 50A ESC
●LiPo battery: 1300~ 1800 mAh
●BL Motor : 2520 to 3226
●Total weight: 515g ±3% (kit with canopy,w/o all electronics, blades and batteries.)

Required For Operation

*Transmitter(6-channel or more, helicopter system)
*Receiver(6-channel or more)
*CCPM Servo x3 / Tail Servo x1
*LiPo Battery :3S or 6S
*ESC: 50A+ ESC recommended
*CF main blades(360~385mm)
*Flybarless System
*12~13T Pinion Gear
*BL Motor : 2520 to 3226

Tools and Equipment for Assembly

*1.5 mm Hexagon Screw Driver
*2 mm Hexagon Screw Driver
*2.5 mm Hexagon Screw Driver
*Philips Screw Driver
*Lubricant / one-way bearing grease
*Spring calipers, Needle-nosed pliers
*General thread lock
Basic kit does not include motor, batteries, servos, FBL or ESC.

The available pinions for X3 are as follows (Pinion 12T~13T) with drive gear ratios:
12T 10.91 : 1 : 5.46
13T 10.07 : 1 : 5.46
