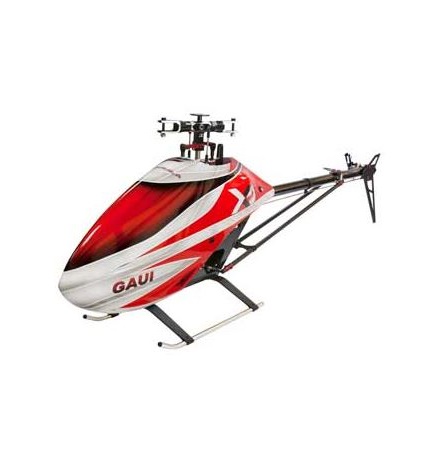

GAUI X5 Formula Basic Kit

Description

Features

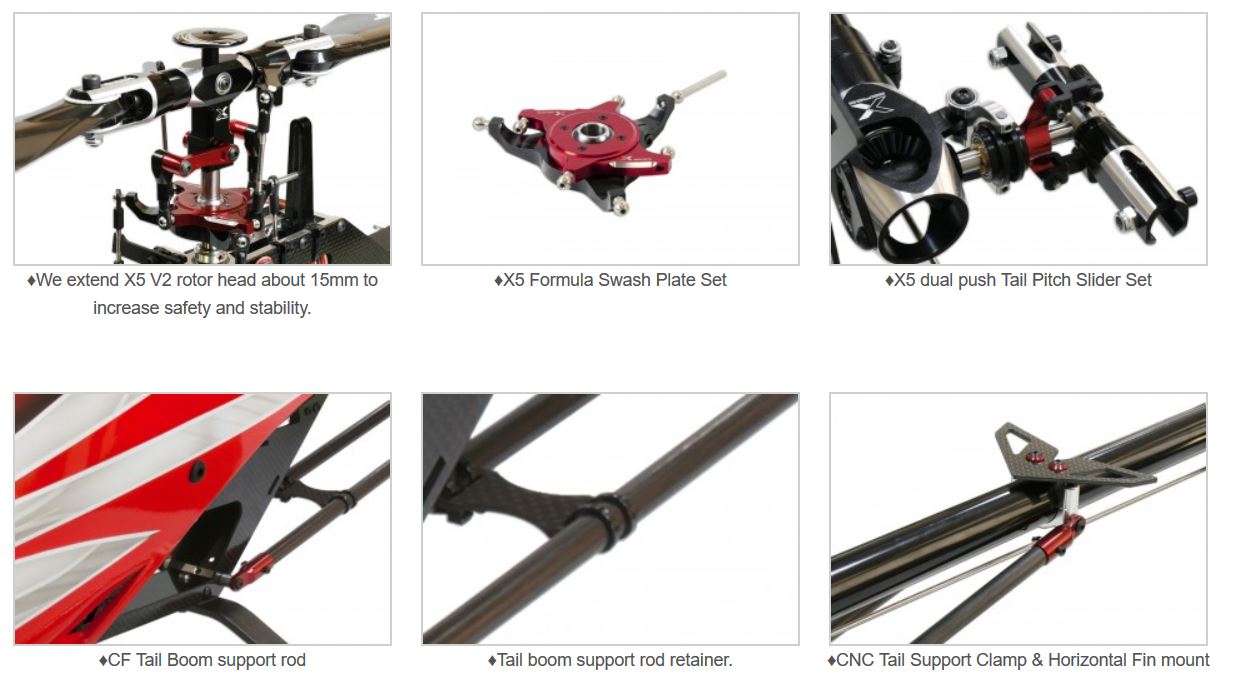

• New Formula version X5, stylish Black/Red anodized CNC parts.
• New Low CG FORMULA FBL rotor head, Formula Rotor Head is 10mm lower than the
  previous standard X5 Rotor head. Increase in flight characteristics of X5.
• CNC Washout Arm centered on Main Rotor head allowed more precise 3D flight control by pilots.
• Main blade grip adopts pilot selectable 3 holes design, making it easy to adjust for various flight control reaction to fit each pilot.
• X Series laser logo with dual color artistic design.
• 3K CF frame has anti-erosion, anti-thermal expansion, tensile characteristics.
• Advanced new CNC Swash plate with light weight design.
• Swash plate gap adjustment and anti-shedding steering linkage ball design.

Specifications:

Height: 315mm,
Width: 165mm,
Length (including canopy): 1000mm
Weight: 1820g +/-3% (including electronics without battery)
Main Blades: 500 ~ 530mm,
Main blade rotation diameter 1120mm
Tail blade: 82mm,
Tail rotation diameter: 230mm
Power System recommendation: Motor: 910kV,
ESC: 100A Flight time: 4~5minutes

Required for operation

*Transmitter(6-channel or more, helicopter system)
*Receiver(6-channel or more)
*LiPo Battery: 6S1P(22.2v/4200mah / size:48x44x135mm)
*ESC: 100A+ ESC recommended

Tools and Equipment for Assembly

*1.5 mm Hexagon Screw Driver
*2 mm Hexagon Screw Driver
*2.5 mm Hexagon Screw Driver
* Philips Screw Driver
* Lubricant / one-way bearing grease
* Spring calipers, Needle-nosed pliers
* General thread lock
