Description
The Goblin 500 Sport Basic Kit has been developed using the “Sport” line features including the G10 Frames and Fiberglass canopy to provide the best performance for the lowest price. Please note this kit does not come with main or tail blades.

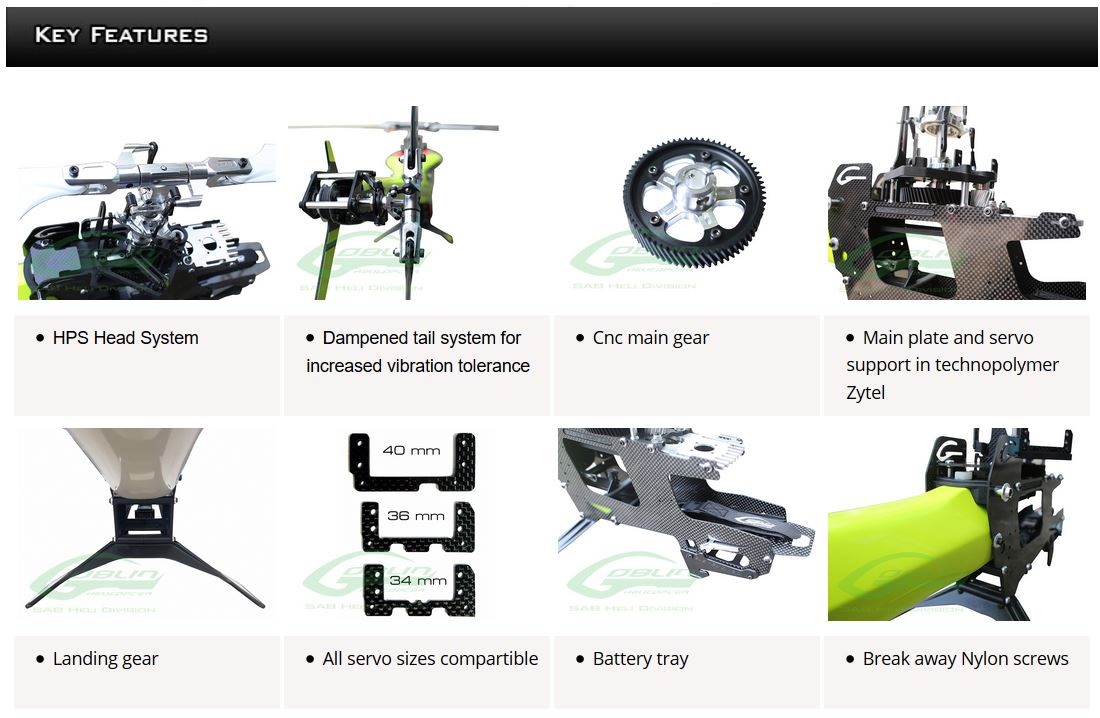

Features:
- Stylish fiberglass canopy.
- New carbon tail boom manufactured using an innovative lower cost process lowering the overall cost.
- G10 mainframe delivers performance on a budget. Compatible with the standard carbon frame to allow simple upgrading if desired.
- No blades included, giving you more freedom to choose your style and further control your budget.
- Ability to use medium or full-size servos.
- The structural plates are now made of a plastic material Zytel 70G33L. This change ensures a reduction of 48 grams in weight.
- Main gear CNC H0423 (aluminum/delrin) included in the basic kit.
- New Swashplate with high quality spherical bearing.

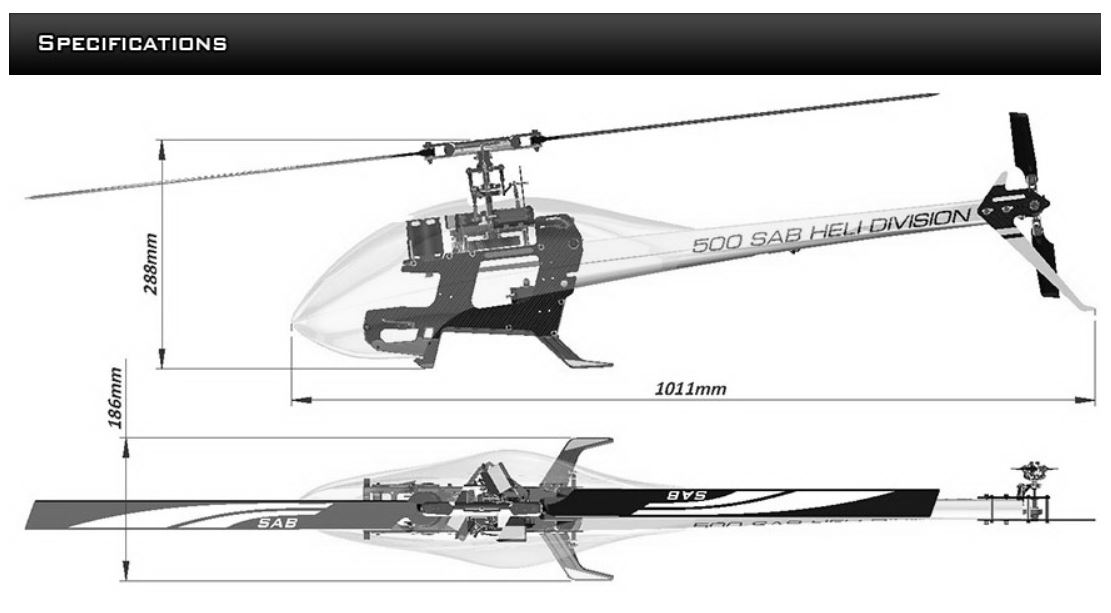

General Specifications:
- Main rotor diameter:Â 1136 mm
- Main blade length: 500mm
- Tail blade length: 80 mm
- Weight including electronics: 1880 g (excluding batteries).
- 18T motor pulley included
Electronic Specifications:
- Cyclic Servos: Mid or Standard size (36 and 40 mm)
- Tail Servo: Standards size 40mm
- Typical speed controller: 100A
- Maximum motor size: 52 mm diameter, 58 mm height
- Flight Battery: 6S 3300/4500 mAh; Battery compartment: 50 x 54 x 180mm
Kit Includes:
- 18T motor pulley (other pulley sizes available)
- 2 battery trays
The Following motor pulleys are available:
- 16T Pulley (P/N 0215-16-S) Ratio 10.33:1
- 17T Pulley (P/N H0215-17-S) Ratio 9.72:1
- 18T Pulley (P/N H0215-18-S) Ratio 9.18:1
- 19T Pulley (P/N H0215-19-S) Ratio 8.7:1
- 20T Pulley (P/N H0215-20-S) Ratio 8.26:1
- 21T Pulley (P/N H0215-21-S) Ratio 7.87:1
- 22T Pulley (P/N H0215-22-S) Ratio 7.51:1
- 23T Pulley (P/N H0215-23-S) Ratio 7.19:1
- 24T Pulley (P/N H0215-24-S) Ratio 6.91:1
