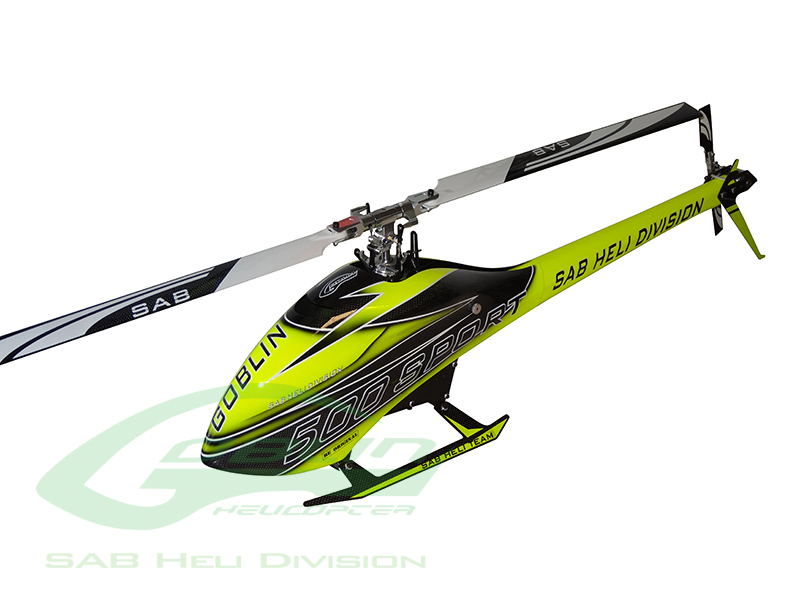

Goblin 500 Sport Carbon **Discontinued**

• The design totally changes to follow the family feeling with the Goblin 380.
• Ability to use medium and full-size servos
• 2 sets of Main blades
• 2 sets of Tail blades
• The structural plates are now made of a plastic material Zytel70G33L. This change ensures a reduction of 48 grams in weight.
• Main gear CNC H0423 (aluminum/delrin) in the basic kit
• New Swashplate with high quality spherical bearing
• Landing gear with extra width
• Boom obtained with upgraded technology, 25 grams less

And plenty of other smaller improvements!!

General Specifications:

• Main rotor diameter:  1136 mm
• Main blade length: 500mm
• Tail blade length: 80 mm
• Weight including electronics: 1880 g (excluding batteries).
• 18T motor pulley included

Electronic Specifications:

• Cyclic Servos: Mid and Standard size (36 and 40 mm)
• Tail Servo: Standards size 40mm
• Typical speed controller: 100A
• Maximum motor size: 52 mm diameter, 58 mm height
• Flight Battery: 6S 3300/4500 mAh; Battery compartment: 50x54x180mm

Kit Includes:

• 18T motor pulley (other pulley sizes available)
• 2 battery trays
• 500 mm main blades (2 sets)
• 80 mm tail blades (2 sets)
• Full Carbon Canopy (H0660-S)
• Optional Landing Gear (H0652-S)

• HPS Head System

• 100% full Carbon Boom (In White and Yellow color)

• CNC main gear

• Main plate and servo support in techno polymer Zytel

• Swashplate with commercial spherical bearing

• Full Carbon Canopy

• All servo sizes compatible

• Break away Nylon screws
