Description

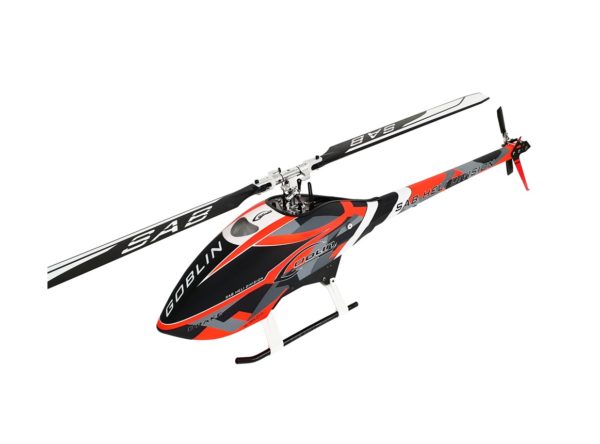

Goblin 570 Drake Edition ( with main and tail blades )
The Goblin Drake edition has evolved from the SAB Avio jet division using the Drake matt graphic scheme for an awesome new look.
Kit includes the new “Series S” SAB main and tail blades.
Specifications:
- Main rotor diameter: Â 1278 mm (with 570 mm blades)
- Main blade length: 550 to 575mm
- Tail rotor diameter: 260 mm
- Tail blade length: 95 mm
- Weight including electronics: 2370 g (excluding batteries)
- Drake Matt graphic scheme
- Stronger Main Gear
- Cyclic Servos:Â Standard size 40mm
- Tail Servo:Â Standard size (40mm)
- Typical Speed Controller:
- 6S 120A
- 12S 130A
- Maximum motor size: 4025 size (52 mm diameter, 56 mm height)
- 6S 1000-1400 Kv
- 12S 500-700 Kv
- Battery compartment:
- 6S 5000/5500 mAh. Â Max dimension 50x60x200mm
- 12S 2600/3300 mAh.  Max dimension  50x45x280mm
Kit includes:
- 21T motor pulley (other pulley sizes available)
- 1 battery tray with straps
- 570 mm main blades
- 95 mm tail blades
- Upgraded, Stronger Main Gear
- Tail Belt Tensioning System
- Stable Wide Landing Gear (both white and black color included in the kit)
