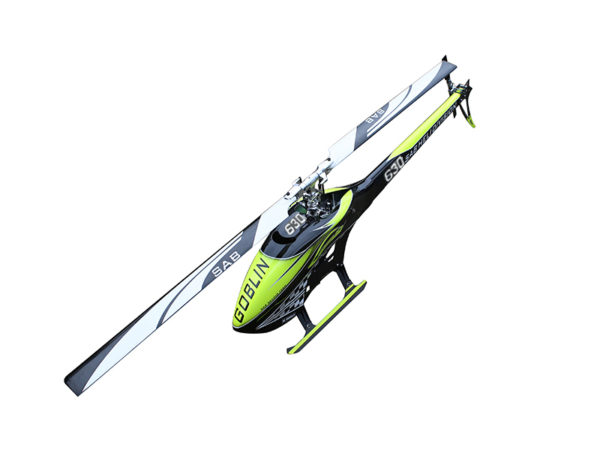

Description

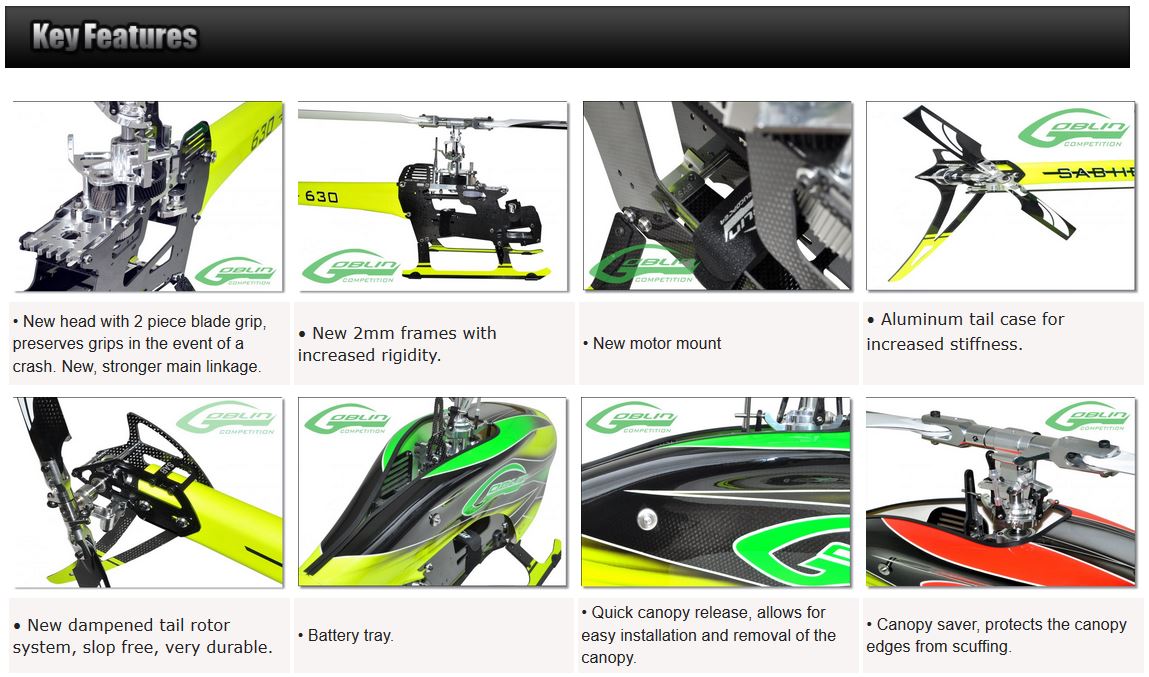

Carbon kit includes the following upgraded parts:
– New Swash Plate Design
– New Tail Pitch Slider Set
– New Plastic Landing Gear Set
– Aluminum Tail Pulley 26T
**Note: Carbon Edition kit is also available in colour scheme RED/BLACK. Available as special order only. Red kit does not ship with upgrades detailed above.
| General Specifications | Electronic Specifications |
| • Main rotor diameter: 1428 mm (with 630 mm blades)• HPS Head• Main blade length: 630 mm
• Tail rotor diameter: 285 mm • Tail blade length: 105 mm • Main shaft diameter: 12 mm • Tail shaft diameter: 6 mm • Spindle shaft diameter: 10 mm • Gear Ratios 8.6-11.9 : 1 • Weight including electronics: 3320 g (excluding flight battery) • 21T motor pulley included (other pulley sizes available) |
• Cyclic Servos: Standard size (40mm)
• Tail Servo: Standard size (40mm) • Typical Speed Controller: 120A • Motors: (Max Diameter: 64 mm, Max Height: 64 mm) • Battery compartment: 60x58x350mm (adaptable to 64x58x350mm) Kit Includes: • 21T motor pulley (other pulley sizes available) • 2 battery tray • 630 mm main blades • 105 mm tail blades |
| The following motor pulleys are available: |
| 18T Pulley (P/N H0015-18-S) Ratio 11.9:1 19T Pulley (P/N H0015-19-S) Ratio 11.3:1 20T Pulley (P/N H0015-20-S) Ratio 10.7:1 21T Pulley (P/N H0015-21-S) Ratio 10.2:1 |
22T Pulley (P/N H0015-22-S) Ratio 9.8:1 23T Pulley (P/N H0015-23-S) Ratio 9.3:1 24T Pulley (P/N H0015-24-S) Ratio 8.9:1 26T Pulley (P/N H0015-26-S) Ratio 8.6:1 |
All motor pulleys are for a 6 mm motor shaft. Motor pulley for 8 mm is also available (P/N: H0126-XX-S)
