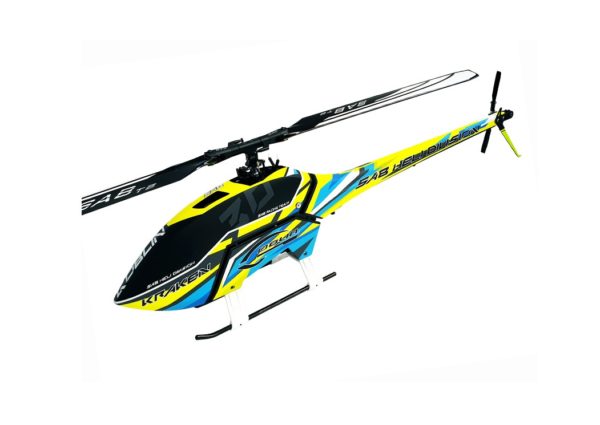

SAB Kraken Blue/Yellow

Enclosed Gear Box System
While still under wraps, the designers and testing during development has delivered incredible durability through flight and crash testing. An enclosed design provides simplicity for the end user, as well as never before seen longevity thanks to it’s generously oversized bearings, and other secret patent pending designs.

Kraken Rotor Head – Performance and Durability
The Kraken Rotor Head provides users with several updates. First and foremost is the Rotor Head, & Blade Grips are manufactured from 7075 aluminum. When paired with the Blade Grip Arm (the disposable part in a crash), that is manufactured from 6061 aluminum, and serviceable from outside the rotor grip, both building the new kit, and maintenance will be a breeze. Additionally, there are two Blade Grip Arms offered for different flying styles – spacing 26mm from the center of the rotor head, and 30mm. 26mm provides a higher response rate, and 30mm will provide a higher resolution feel.

Kraken Tail Rotor

While featuring a standard tail group design with a pitch slider and lever, SAB ensured performance of the Kraken was at the top of the design list in every way possible. Shedding 22% of the weight over previous Goblin tail groups, the Kraken not only incorporates a powerful and reliable tail system, but adds small amounts of performance gain by removing weight far away from the CG – aiding in Flybarless performance, and flight characteristics.

Specifications:

• Main rotor diameter: 1558mm w/690mm blades
• Main blade length: 650mm – 730mm  (690mm included with kit)
• Main shaft diameter: 12mm
• Main Ratio: 12.1 to 8.8 :1 (21T included: 10.4:1)
• Spindle diameter: 10mm
• Tail rotor diameter: 284 mm with 105 mm size tail blades
• Tail blade length: 105 to 115 mm (105mm included in kit)
• Tail shaft diameter: 6mm
• Tail Ratio: 5.0-4.8:1 (27T included: 4.8:1)
• Cyclic Servos: Standard size (40mm)
• Tail Servo: Standard size (40mm)
• Typical Speed Controller: 12S 200A
• Typical Motor size: 12S 500-560 Kv, 4525 series (max 62 mm diameter, 70 mm height)
• Battery compartment: 12S 4200-5500 mAh. Max dimension 56mm x 70mm x 320mm
• Estimated weight: 3820g (without battery)
• Airframe weight: 2680 (with blades, no battery, no electronics)

Includes:

• 1 x SAB Goblin Kraken Electric Helicopter
• 1 x Set of SAB 690mm Carbon Fiber Main Blades
• 1 x Set of SAB 105mm Carbon Fiber Tail Blades
• 1 x Motor Pulley 21T (other pulley sizes available)
• 2 x Sets Battery Tray with strap

Needed To Complete:

• 2.4GHz Transmitter & Receiver (7-channel or more, helicopter system)
• Electric Motor 4035 – 4525 500-560kV
• (3) Cyclic Servos (Standard Size, 40mm; High Torque Recommended)
• (1) Tail Rotor Servo (Standard Size, 40mm)
• 12s 4000 – 5000mAh LiPo Batteries
• 3-Axis Flybarless System
• Compatible Battery Charger
• Pitch Gauge
• Various tools, lubes & greases for setup and assembly

Click here to see a short video of the Kraken from the Rebels Funfly in May this year.
