Description

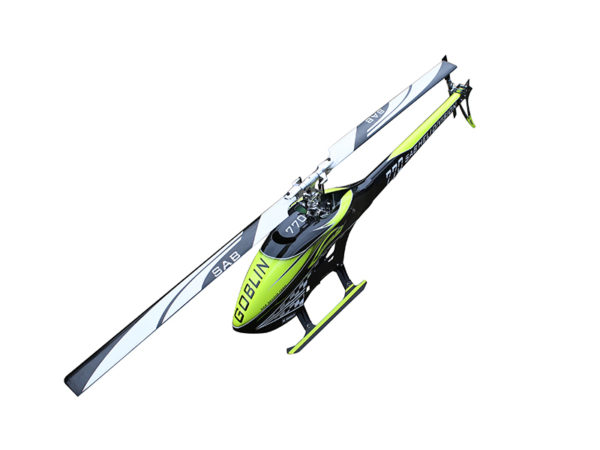

SAB Goblin 77o Carbon kit includes the following upgrades:
– New Swash Plate Design
– New Tail Pitch Slider Set
| General Specifications |
Electronic Specifications |
|
• Cyclic Servos: Standard size (40mm) • Tail Servo: Standard size (40mm) • Typical Speed Controller: Kontronik Kosmik 160/200, YGE 160, CC 160HV. • Typical Motors: Xnova 4530-480kv Pyro 800-480, Quantum 4530-450kv, Scorpion 4530-450kv, – Max. 65 mm diameter x 80 mm height • Battery compartment: 75 x58 x 350mm Kit Includes: • 21T motor pulley (other pulley sizes available) • 2 battery tray • 770 mm main blades • 110 mm tail blades |
| The following motor pulleys are available: |
|
18T Pulley (P/N H0175-18-S) Ratio 11.9:1 19T Pulley (P/N H0175-19-S) Ratio 11.3:1 20T Pulley (P/N H0175-20-S) Ratio 10.7:1 21T Pulley (P/N H0175-21-S) Ratio 10.2:1 |
22T Pulley (P/N H0175-22-S) Ratio 9.8:1 23TPulley (P/N H0175-23-S) Ratio 9.3:1 24T Pulley (P/N H0175-24-S) Ratio 8.9:1 25T Pulley (P/N H0175-26-S) Ratio 8.6:1 |
| • New head with 2-piece blade grip preserves grips in the event of a crash. New, stronger main linkage. | • New 2mm frames. | • Metal main gear, 19 mm Gates GT3 motor belts, double one-way bearing | • New strong landing gear. |
| • Aluminum tail case for increased stiffness | • New dampened tail rotor system, slop free, very durable. | • Battery tray. | • Canopy saver, protects the canopy edges from scuffing. |
