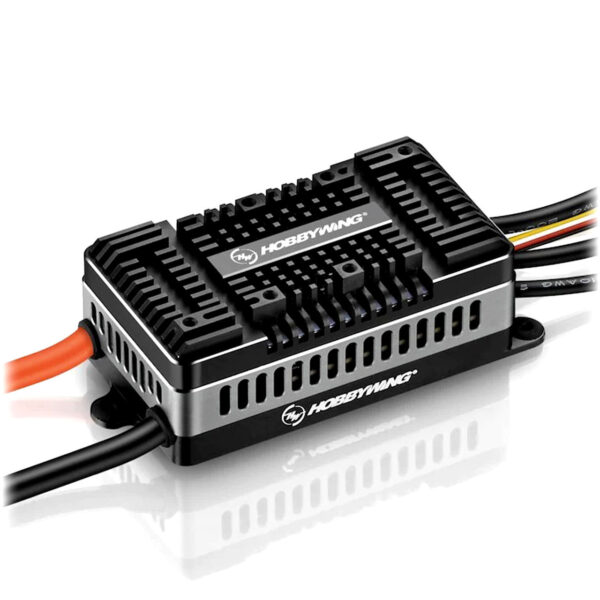

Hobbywing Platinum 260A HV V5 ESC (6-14S) w/SBEC

Description

Hobbywing Platinum 260A High Voltage V5 Brushless ESC (SBEC) with BEC. Equipped with a high-power switch regulated UBER POWER BEC, with a continuous output current of 10A and instantaneous current of up to 30A! synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear and drives more efficiently! The Platinum 260A HV V5 is also equipped with four different flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode for an extremely convenient and enjoyable experience! while the helicopter speed-control function provides adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes and the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors!

In addition, the Platinum 260A HV V5 comes with an output interface to showcase the motor speed output in real time, a Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module – Sold Separately). When it comes to protection, Platinum 260A HV V5 is fitted with built-in multi-protection functions and anti-spark circuitry that effectively protect and prolong the lifespan of the ESC.

Features:

• Double-sided cooling structure helps to further enhance the cooling efficiency on the ESC
• Equipped with a high-power switch regulated UBER POWER BEC, with a continuous output current of 10A and instantaneous current of up to 30A
• Equipped with the synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear, drives more efficiently and temperature efficient
• Equipped with four flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode
• Equipped with the helicopter speed-control function for adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes
• Equipped with the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors
• Equipped with LED indicators
• Equipped with an output interface to showcase the motor speed output in real time
• Equipped with a separate parameter setting interface which allows it to be connected to the LCD parameter set-up box or OTA module for parameter setting
• Double-fan mounting holes for maximum heat dissipation
• Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module – Sold Separately)
• OTA Wireless module supported for quick changes to the parameter settings, software upgrading, data recording and other operations can be completed via the HW APP
• Built-in multiple protections that effectively extend the lifespan of the ESC

Specifications:

• Application: 700-800 Class Electric Helicopter
• Continuous/Instantaneous current: 260A / 400A
• Input voltage: 6-14S LiPo battery
• BEC: 5-12V Adjustable
• The input/output wire: 1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires
• Independent parameter programming: Connect LCD program box or OTA module, or to power the cooling fan
• Dimensions (LxWxH): 89x50x34mm
• Weight: 297g
• Mounting holes: 3mm, 39x98mm

Includes:

• (1) Platinum 260A High Voltage V5 Brushless ESC (SBEC) with BEC
• User Manual
