Lynx – GOBLIN 500 – Cyclic Standard Size Servo Support

Lynx Heli Innovations we are 3D pilot and we fly the same helicopter as you.

Goblin 500 comes with cyclic mini servos. Lynx has redesigned the standard Goblin 500 servo support giving the option to install Standard size servo.

The main reason of this upgrade is to allow you to install stronger, faster and more precise servo using the classic servo size normally used in bigger class heli.

Lynx made this simple design different! The vertical STD servo support plates are made by 3K Carbon OEM in Lynx factory and the servo tabs are an innovative design.

Lynx servo tabs have M2.5 thread holes, this design does not require nuts. You will be amazed by the easy, quick and solid installation.

The best STD servo support for you Goblin 500.

FEATURES:

– Upgrade to STD servo size in order to achieve greater cyclic response and resolution

– Lynx CNC servo tab with built-in M2.5 thread for quick and strong installation

– FEA (Final Elements Analysis) assisted, achieves lighter weight and maximum strength.

 TECHNICAL SPECIFICATION:

– Servo Support Material: Carbon 3K – 3mm

– Servo Tab Material: Aluminum 7075-T6 – clear – Silver  –  anodized finish

– Hardware Material: Carbon Steel

– Assembly weight: 18.20 g

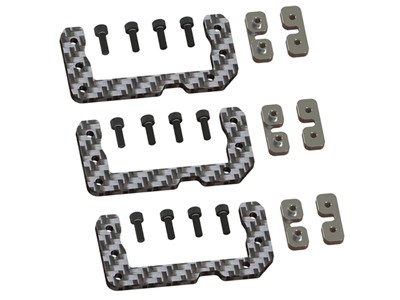

 PACKING LIST:

– 3 x STD servo Carbon Fiber plate

– 6 x Servo Tabs

– 12 x Hex Cup Screw M2.5×8
