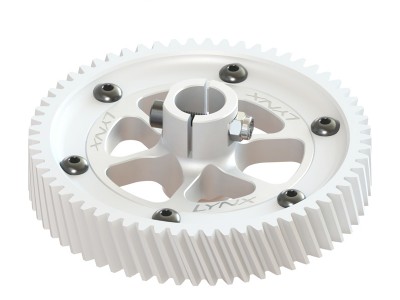

Lynx – GOBLIN 500/570 – ULTRA CNC MAIN GEAR SET – SILVER

Lynx Heli Innovations is always looking toward new ideas and solutions.

We redesigned the standard Goblin 500/570 main gear, and made it special.

Lynx Main Gear is composed of two parts, super rigid center hub in aluminum and a replaceable Delrin 100A , CNC Main Gear Ring. The new design assures the best compromise between geometric tolerance and strength.

If you enjoy your Goblin 500/570, this main gear upgrade will support you with superior performance and wear resistance, flight after flight.

Lynx Goblin 500/570  Main Gear Ring is produced by CNC operation, using a techno-polymer material with auto-lube features to assure maximum load and friction resistance.

The Lynx Goblin 500/570 main gear comes pre-assembled.

 FEATURES:

– Increase transmission efficiency

– Optimized lightweight and strength design.

– Superior wear and load resistance.

– Aluminum hub helps heat dissipation generated by high power transmission.

– Direct replacement for standard Goblin 500/570 parts

– Special design for easy Main Gear Ring replacement

– Design assisted by FEA (Finite Element Analysis) to achieve lighter weight and maximum strength.

 TECHNICAL SPECIFICATIONS:

– Goblin 500/570 Main Gear Center Hub material: Aluminum 7075-T6 – Silver anodized finish

– Goblin 500/570 Main Gear Ring material: Delrin 100A – POM – White color

– Hardware material: Carbon steel

PACKING LIST:

1 x G500/570 Ultra Main Gear – Factory Assembled (Silver Center Hub + Main Gear Ring + 6 x M3x6  Button Head Cup Screw)

1 x M3x18 Shouldered Hex Cup Screw

1 x M3 Self Lock Nut
