Lynx – ULTRA MAIN GEAR SET – SILVER – GOBLIN 700

Lynx Heli Innovations is always looking towards new ideas and solutions.

Lynx have completely redesigned the standard Goblin 630-700-770 main gear.

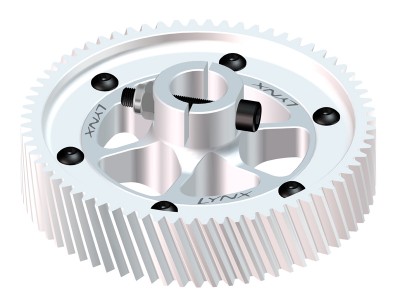

The Lynx Main Gear is composed of two parts, super strong aluminum center hub and a replaceable Delrin 100A , CNC Main Gear Ring. The new design assures a maximum compromise between geometrical tolerance and strength.

Designed specifically for superior performance and wear resistance.

Lynx Goblin 630-700-770 Main Gear Ring is produced by CNC operations, using a techno-polymer material with auto-lube features to ensure maximum load and friction resistance.

The Lynx Goblin 630-700-770 main gear comes pre-assembled.

FEATURES:

– Increase transmission efficiency

– Optimized lightweight and strength design.

– Superior wear and load resistance.

– Aluminum hub promotes heat dissipation generated by high power transmission.

– Direct replacement for standard Goblin 630-700-770 parts

– Special design for easy Main Gear Ring replacement

– Design assisted by FEA (Finite Element Analysis) to achieve light weight and maximum strength.

TECHNICAL SPECIFICATIONS:

– Goblin 630-700-770 Main Gear Center Hub material: Aluminum 7075-T6 – Silver anodized finish

– Goblin 630-700-770 Main Gear Ring material: Delrin 100A – POM – White color

– Hardware material: Carbon steel

 PACKING LIST:

1 x G630-700-770 Ultra Main Gear – Factory Assembled (Silver Center Hub + Main Gear Ring + 6 x M3x8  Button Head Cup Screw)

1 x M4x25 Shouldered Hex Cup Screw

1 x M4 Self Lock Nut
