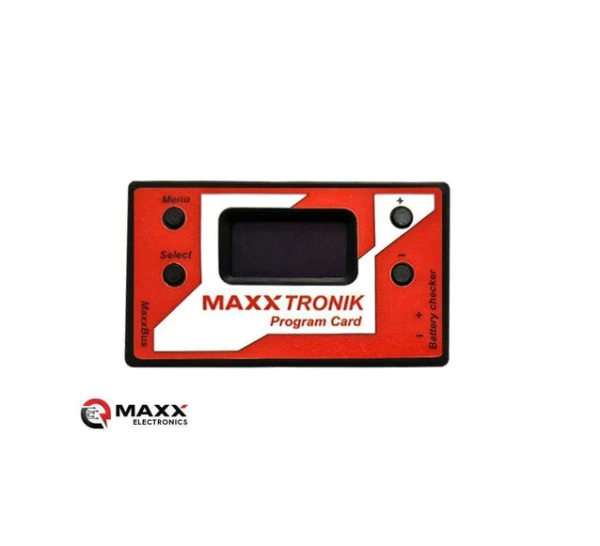

MAXX Flybarless Program Card/Battery Voltage Checker

Description

MAXX Flybarless Program Card/Battery Voltage Checker

Includes:

• 1 x MAXX Flybarless Program Card/Battery Voltage Checker

MAXX Flybarless Program Card v2.4 Features:

• No computer required
• Battery meter:  2 -6s battery voltage meter of the cell and total voltage.
• Rx signal monitor:  Checking RC channel value of the 7 channels, checking the center of transmitter.
• Heli configuration:  Heli size, flying style, receiver type, DSM satellite Bind, rescue function, safety threshold of the BEC, sensor mount type
• Cyclic configuration: Swashplate type config, swashplate Trim, servo type, servo Trim, servo reverse
• Cyclic tunning: Limit, cyclic gain, separate aileron gain and elevator gain setting, agility, roll/flip rate, advance PID gain, RC deadbank, Eleprecom, paddleSim, expo, change value of three banks.
• Collective configuration: Pitch travel +/-, direction, pitch pump
• Tail configuration:  Servo type, servo reverse, tail travel, tai servo Trim, tail balance for 2-way tail rotation brake, tail rotation rate, tail acceleration , tail stop, show the tail gain from Tx, tail precom ( by collective pitch, cyclic), tail PID advance gain tuning. Ability to configurate 760us swashplate type servos
• Governor configuration:  Governor enable/disable, governor type (Gas nitro/ electrics), 10-step gain, Max-min of Throttle, start throttle for Maxx softstarter, scrollup speed for softstarter, gear ratio configuration, poles, Bailout, Idling bailout, set Rpm value of three banks.
