MKS HV9780 Mini Tail Servo

Description

MKS HV9780 Titanium Gear, High Voltage, Tail Mini Servo with Aluminum Case. This servo is recommended for all 500 class (or similar) helicopter tail applications.

Specifications:

• Torque:
  • @6.0V: 45.8 oz-in (3.3 kg-cm)
  • @7.4V: 55.5 oz-in (4.0 kg-cm)
  • @8.2V: 62.4 oz-in (4.5 kg-cm)
• Speed:
  • @6.0V: 0.055 s
  • @7.4V: 0.045 s
  • @8.4V: 0.040 s
• Weight: 38.01 g

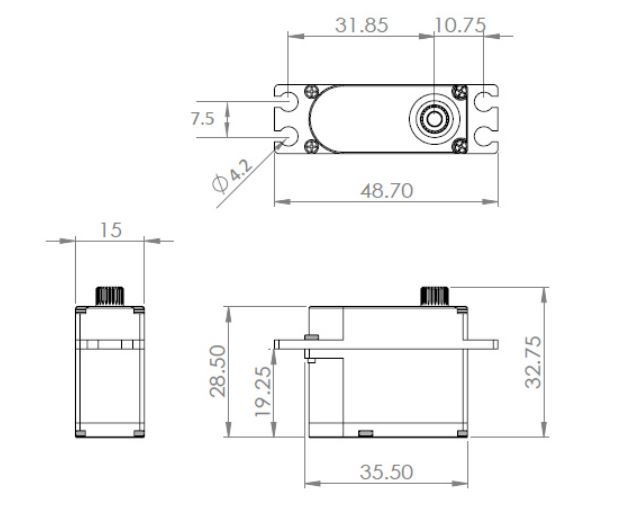

• Dimension: 35.5x15x28.5mm
• Working Voltage: 5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
• Working Frequency: 760μs / 560hz
• Dead Band: 0.001 ms (Default)
• Bearing: 2BB
• Motor: Coreless Motor
• Gear: Chrome-Titanium alloy gear
• Electric Current Draw: 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V)
