Description

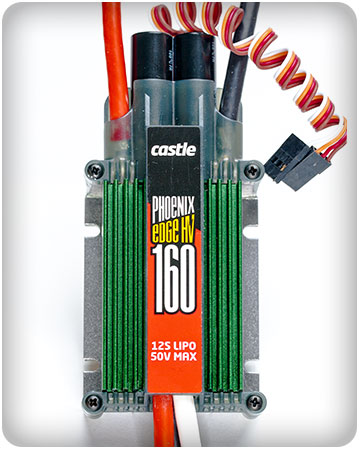

Product Details – PHOENIX EDGE 160 HV
| Applications | |
| Helis: | 700 Class or 800 Class |
| Fixed wing: | giant scale |
| Technical Specs | |
| Input voltage: | MIN: 3S LiPo MAX: 12S LiPo |
| Max continuous amperage at full throttle: | 160 amps* |
| Size and Weight | |
| Width: | 2.0″ (50.8mm) |
| Length: | 4.3″ (108.4mm) |
| Height: | 1.2″ (31.5mm) |
| Weight w/wires: | 8.2 oz (232.8g) |
| Weight w/o wires: | 5.3 oz (150.6g) |
| Miscellaneous | |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions. |
| Connectors: | Battery and motor connectors sold separately |
| Tools needed for installation: | Soldering iron and solder to attach bullets to motor wires and battery connector to power wires. |
Reviews
There are no reviews yet.
