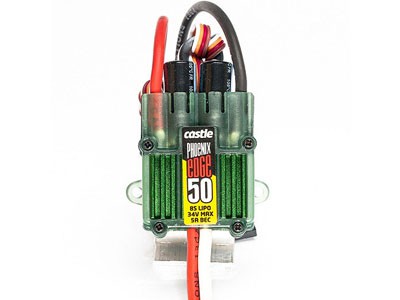

Description
| Applications | |
| Helis: | 450 class |
| Fixed wing: | .25 – .35 |
| Technical Specs | |
| Input voltage: | MIN: 2S LiPo MAX: 8S LiPo |
| Max continuous amperage at full throttle: | 50 amps* |
| BEC voltage (voltage regulator for powering radio and sevos): | User selectable choice from 5 to 8.4 volt output |
| BEC output amperage: | 5 amp peak** |
| Size and Weight | |
| Width: | 1.7″ (43.4mm) |
| Length: | 2.1″ (53.3mm) |
| Height: | 0.8″ 21.4mm) |
| Weight w/wires: | 2.5 oz (70.8g) |
| Weight w/o wires: | 1.6 oz (45.3g) |
| Miscellaneous | |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions. |
| Connectors: | Battery and motor connectors sold separately |
| Tools needed for installation: | Soldering iron and solder to attach bullets to motor wires and battery connector to power wires. |
