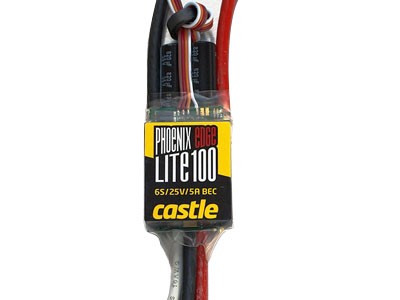

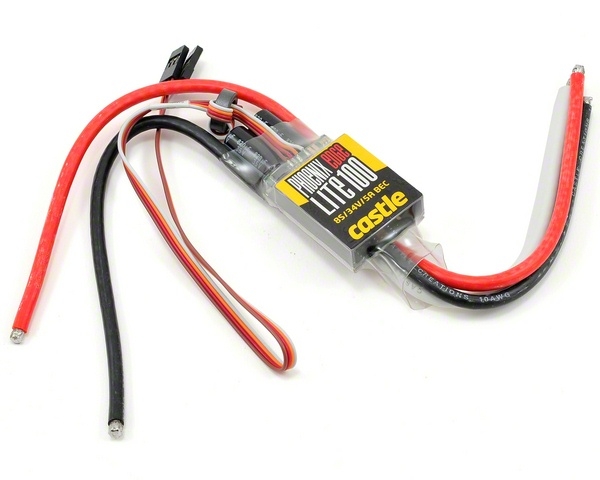

PHOENIX EDGE LITE 100 (25V 100 AMP) BRUSHLESS ESC W/5A BEC

The Castle Creations 100A Phoenix Edge Lite 100 ESC is a fantastic upgrade for any aircraft. Weather you are looking for more reliability or more speed, this 100A ESC is a great choice. This is as much if you are looking to use a higher voltage battery, higher performance prop, or larger motor. The Castle Edge Lite 100 ESC has a 5A internal SBEC and comes with bare wires so you can add the connector of your choice. Combine this with the external Castle 10A SBEC for models with potential for a lot of amp draw. This ESC is fully programmable using the castle link and a windows computer. This ESC can be used with a 2S to 8S LiPo.

Features:

• 100A max current
• Input voltage: 5V to 33.6V (2S LiPo to 8S LiPo)
• Adjustable SBEC output voltage: 5V to 8.4V
• Programmable using the Castle PHX-LINK USB Cable

• Direct connection to motor or bullet connectors
• Battery connector

Specs:

• Size: 2.6″ x 1.2″ x .8″
• Weight: 3.2oz (91.5g) including wires, 1.4oz (41g) without wires
