Description

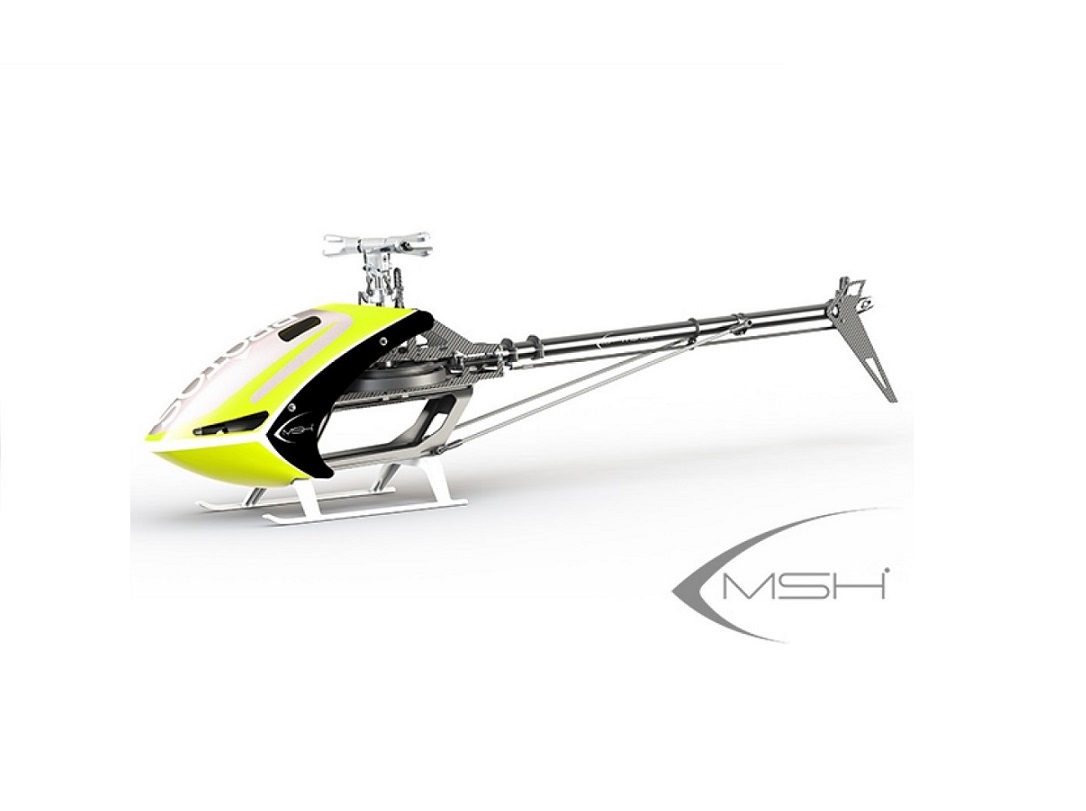

Introducing the Protos 700x. The latest in RC Heli technology from MSH.
Specifications:
| Frame | Support frame made in carbon fiber 2.5mm and aluminium. Bottom frame made in one-piece high quality thermoplastic material |
| System transmission (motor – main rotor) | 15mm Belt |
| Main blades | 716mm (with short boom) up to 800mm (with long boom) optional |
| Battery usable | LiPo from 10s to 14s 4000/5500mAh |
| Battery compartment dimensions | 70mm x 60mm x 360mm |
| Recommended battery | Lipo 12s 5000mAh |
| Main rotor diameter | 1577mm (with 700mm blades) 1777mm (with 800mm blades) |
| Tail rotor diameter | 286mm (with 105mm tail blades) |
| Total length without blades | 1371mm |
| Total length with blades | 1757mm (with 700mm blades) 1857mm (with 800mm blades) |
| Main shaft diameter | 12mm hollow |
| Tail shaft diameter | 6mm |
| Standing height | 365mm |
| Cyclic servos | 3x standard servos Kit includes servo horns to fit standard futaba spline JR style servo horns available separately |
| Tail servo | 1x standard servo |
| Maximum dimension of main blade root | 14mm M5 screw |
| Maximum dimension of tail blade root | 5mm M3 screw |
| Teeth pinion | 20T included. (18T 19T 21T 22T 23T optional) |
| Main pulley teeth | 190T |
| Autorotation pulley teeth | 143T |
| Tail pulley teeth | 30T |
| Tail boom diameter | 27mm |
| Spindle diameter | 10mm |
| Main head and tail box construction material | Al 7075 (Ergal) |
| Main shaft construction material | Steel |
| Included | Ariframe only |
