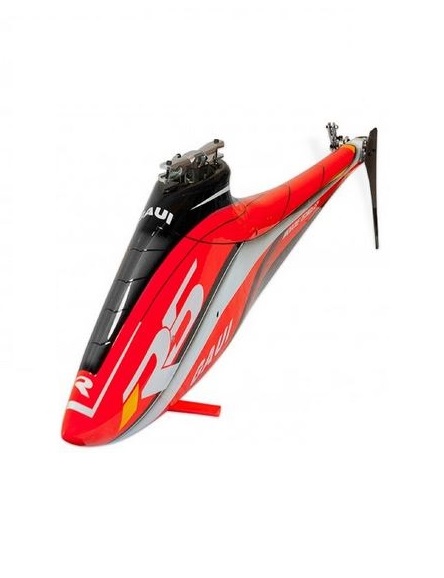

R5 Kit

Description

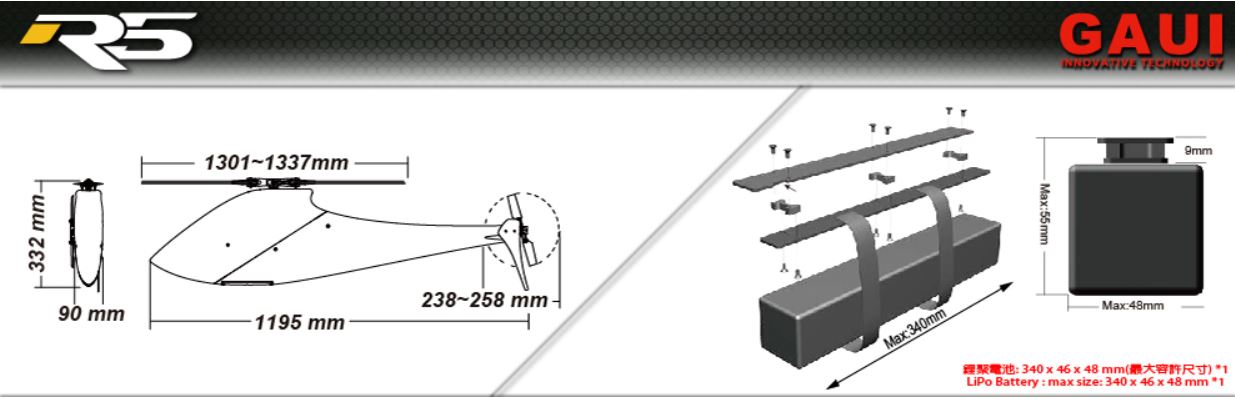

Specifications:

• Overall Length : 1195 mm
• Main Rotation Diameter: 1301~ 1337 mm
• Main blade length: 580 ~ 598 mm
• Overall Height: 332 mm
• Overall Width: 90 mm
• Tail Blade Length: 82~95mm
• Tail Rotation Diameter: 238 ~ 258 mm
• Total weight: 2100g ±3% (kit only, not including electronics)
• Drive Gear Ratio:7.82 : 1 : 4.67

Optional Accessories:

• Standard size CCPM servos * 3
• Standard size tail servo * 1
• 3-Axis Gyro * 1pc
• LiPo Battery : max size: 340 x 46 x 48 mm *1
• 500~540 KV Blushless motor *1
• ESC: (recommended) 160A ESC

Contents:

• R5 Kit x1 pcs
• HALO CF main blades 580L(CFA) x1 pcs
• HALO CF Tail Rotor Blade Set(80mm) x1 pcs
• Digital Servo GS-097 (Contain Step-down Servo Voltage Regulator 7.4V~5V) x1 pcs
