SAB Goblin Fireball Competition

Description

Goblin Fireball Competition

(with Comp. motor, ESC and blades )

Registered design 003738210-0001/0004

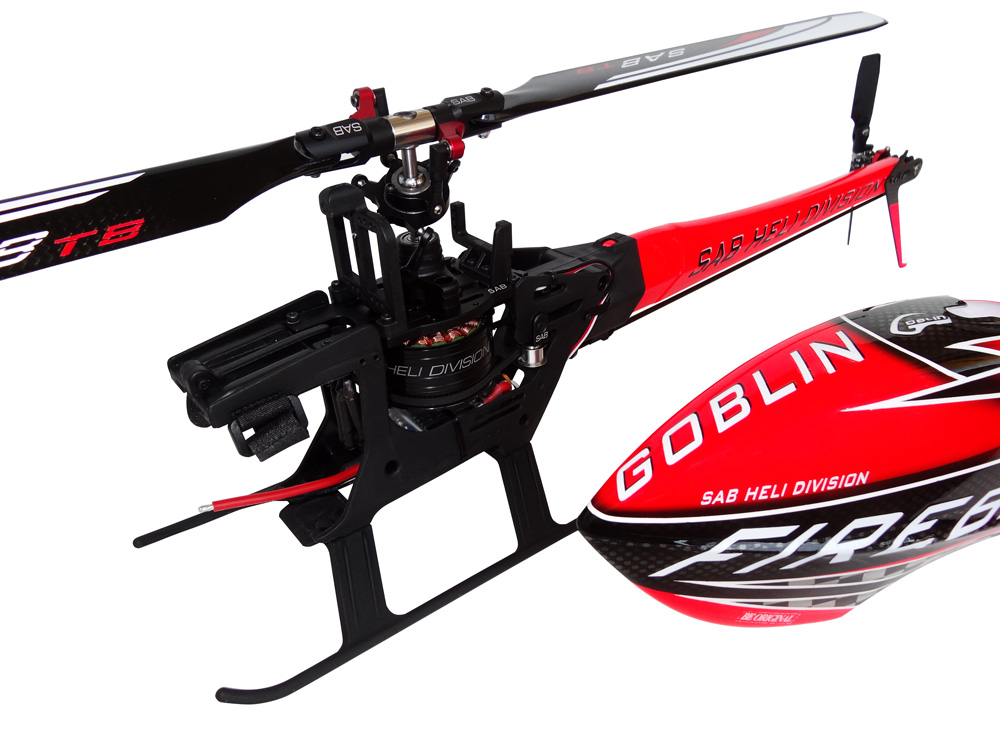

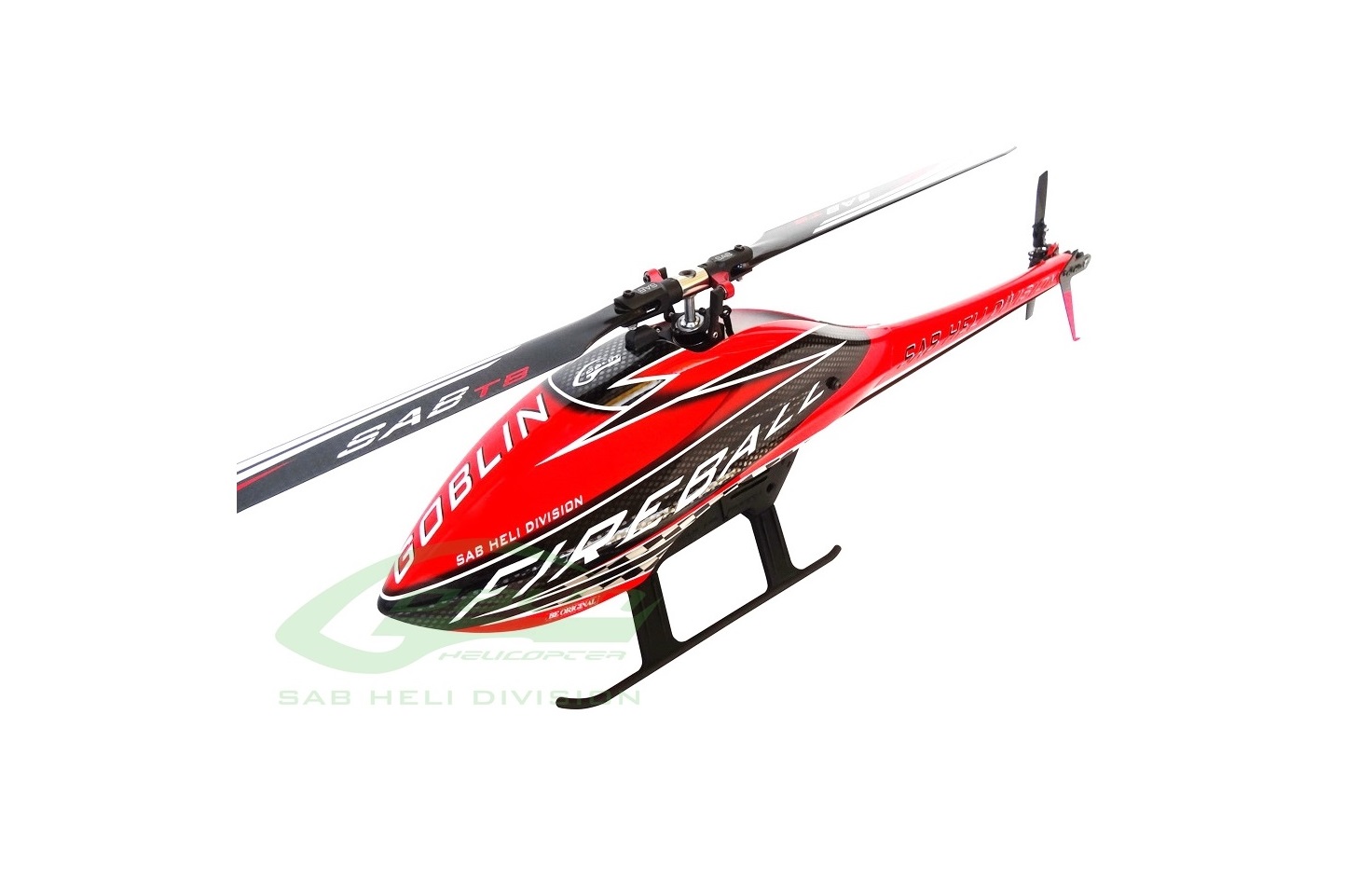

SAB Goblin Fireball 280 – Bring On the Heat !!

Utilizing an ultra innovative & patented Direct Drive motor to main shaft layout, the Goblin Fireball 280 utilizes no transmission system, with the tail belt being direct driven. This allows massive levels of simplicity & functionality, making the system ultra durable and incredibly easy to repair.

Innovative, gorgeous and ready to push the envelope of micro 3D flight, the Goblin Fireball 280 features cutting edge capability & functionality that sets it apart from any other micro heli on the market today.

Features:

• Minimal Parts & Low Complexity with Direct Drive Motor Layout
• Micro Servo Design for Maximum Levels of Performance & Control
• Ultra Innovative Centralized Motor Layout for Optimum CG
• Incredibly Low Parts Count for Ease of Assembly & Repair
• Direct Flight Control System via Swashplate to Rotor System

Specifications:

• Main Rotor Diameter: 626mm w/ 280mm Blades
• Approximate RTF Weight: 890g
• Cyclic Servos: Micro Size / 23mm
• Tail Servo: Mini Size / 23mm
• Motor: Competition SAB Motor -HE015
• ESC: 60A
• Batteries: 6S 22.2V / 900mAh – 1250mAh
• Red Aluminium grip arm
• Red Aluminium tail pitch slider
• Red tail blades
• Red light FG Canopy with carbon look
• Red Carbon-reinforced tail boom

Kit Includes:

• 1 x SAB SG289 Goblin Fireball Competition Kit
• 1 x SAB Competition Goblin Fireball Motor
• 1 set SAB 280mm High Strength Carbon Fiber Main Blades
• 1 set SAB 50mm High Strength Plastic Tail Blades
• 1 x SAB 60A ESC

Required for Flight:

• 3 x Micro Sized 23mm Cyclic Servos
• 1 x Mini Sized 23mm Tail Servo
• 1 x 6S 22.2V 900mAh – 1250mAh LiPo Battery
• 1 x Micro Sized Flight Controller
• 1 x 6+ Channel Transmitter
• 1 x Receiver
