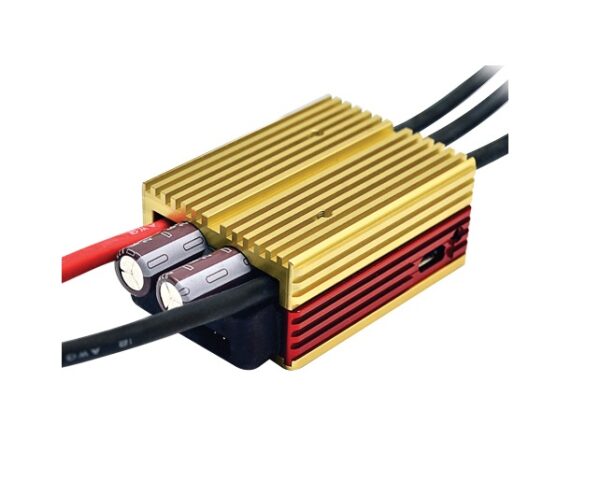

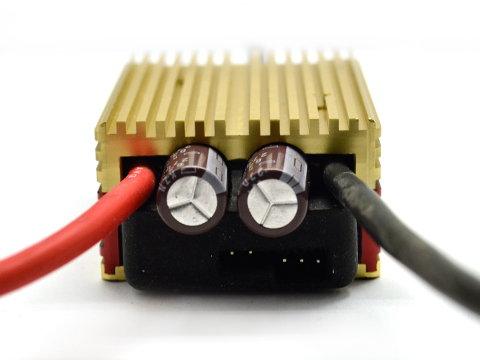

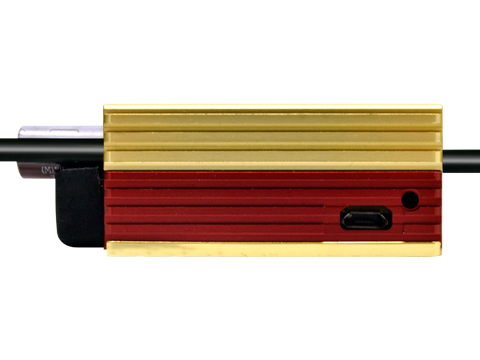

Scorpion Tribunus II 12-130A ESC (SBEC)

Description

Scorpion Tribunus 12-130A ESC SBEC

• Airplane and Heli mode,
• Stored and unstored Governor, external governor.
• Data Logging, Data output port for external data logging device, such as Mikado Vcontrol / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)
• ESC setup can be set by Mikado V control Radio.
• PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
• Supported HvLi battery 12S total 52V.
• Size: 75.3 x 44.3 x 25.7 mm
• Weight: 195 Grams.

Click here for manual and setup tips: Tribunus 130A SBEC

Specifications:

• Max Continuous Current:  130 Amps
• Peak Current:  200 Amps
• Operating Voltage Range:   14-52 Volts
• BEC Output voltage:  5.1V to 8.1V adjustable.
• Max Continuous BEC Output:  10 Amps @ 8.1 V
• Peak BEC Output:  30 Amps/1s @ 8.1 V
• On Resistance:  0.7 mOhms *2
• Size:  75.3 x 44.3 x 25.7 mm (2.96 x 1.74 x 1.01 in)
• Weight (Without Connectors):  195 g (6.87 oz)
• Drive frequency:  8kHz – 32kHz
• Weight including packaging:  591g
