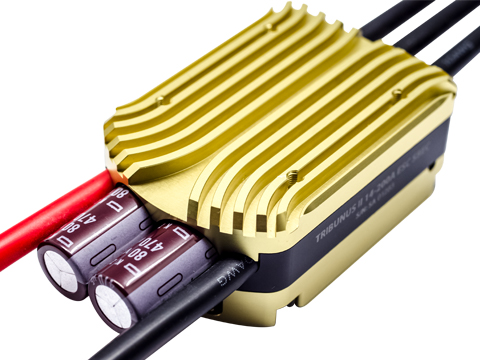

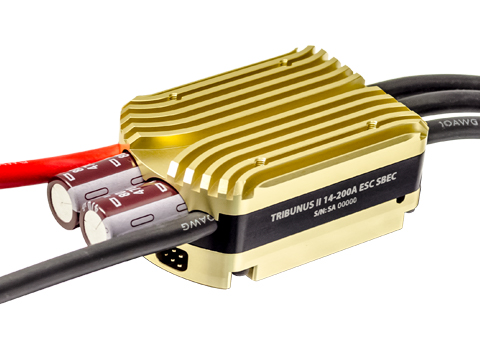

Scorpion Tribunus II 14-200A ESC (SBEC)

Description

Scorpion Tribunus II 14-200A ESC

• Airplane and Heli mode,
• Stored and unstored Governor, external governor.
• Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry, JLog 3
• ESC setup can be set by Mikado vControl Radio.
• PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (optional) plus Diode adaptor (included) cable needed.
• Supported HvLi battery 14S total 61V.
• Size: 83.4 x 45.2 x 30 mm mm
• Weight: 216 Grams.

Click here for manual and setup tips: Tribunus 200A

Specifications:

• Max Continuous Current:  200 Amps
• Peak Current:  250 Amps
• Operating Voltage Range:   14-61 Volts
• BEC Output voltage:  5.1V to 8.3V adjustable.
• Max Continuous BEC Output:  10 Amps @ 8.3 V
• Peak BEC Output:  20 Amps/1s @ 8.3 V
• On Resistance:  0.055 mOhms *2
• Size:  83.4 x 45.2 x 30 mm (3.28 x 1.78 x 1.18 in)
• Weight (Without Connectors):  216g (7.62 oz)
• Weight including packaging:  607g

Included in the Box

• 1 x Diode adaptor cable
• 2 x Connection cable
