Scorpion Tribunus 14-300A ESC (SBEC)

Description

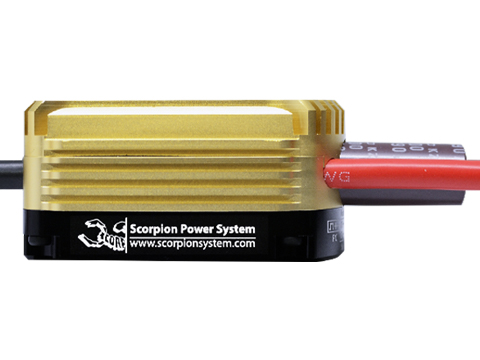

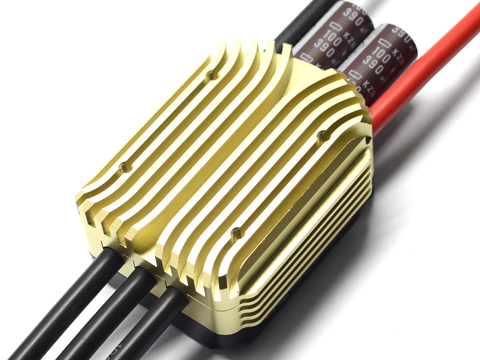

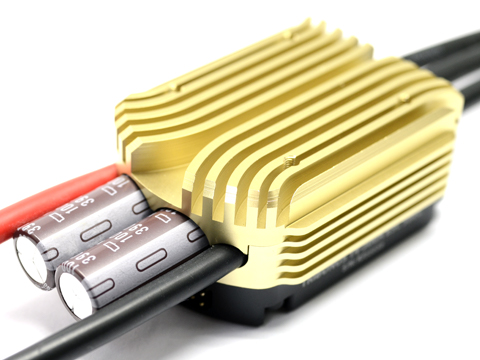

Scorpion Tribunus 14-300A ESC (SBEC)

• Airplane and Heli mode,
• Stored and unstored Governor, external governor.
• Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)
• ESC setup can be set by Mikado V control Radio.
• PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
• Supported HvLi battery 14S total 61V **
• Size: 90.2 x 50 x 31.7 mm
• Weight: 238 Grams

**Using up to16s HV Lipo will not void the warranty.

Click here for manual and setup tips: Tribunus 300A

Specifications:

• Max Continuous Current:  300 Amps
• Peak Current:  400 Amps
• Operating Voltage Range:   14-61 Volts
• BEC Output voltage:  5.1V to 8.3V adjustable.
• Max Continuous BEC Output:  10 Amps @ 8.3 V
• Peak BEC Output:  30 Amps/1s @ 8.3 V
• On Resistance:  0.65 mOhms *2
• Size:  90.2 x 50 x 31.7 mm (3.55 x 1.96 x 1.24 in)
• Weight (Without Connectors):  238g (8.39 oz)
• Drive frequency:  8kHz – 32kHz
• Weight including packaging:  627g

Included in the Box

• 1 x Diode adaptor cable
• 2 x Connection cable
