Soko Helical

Description

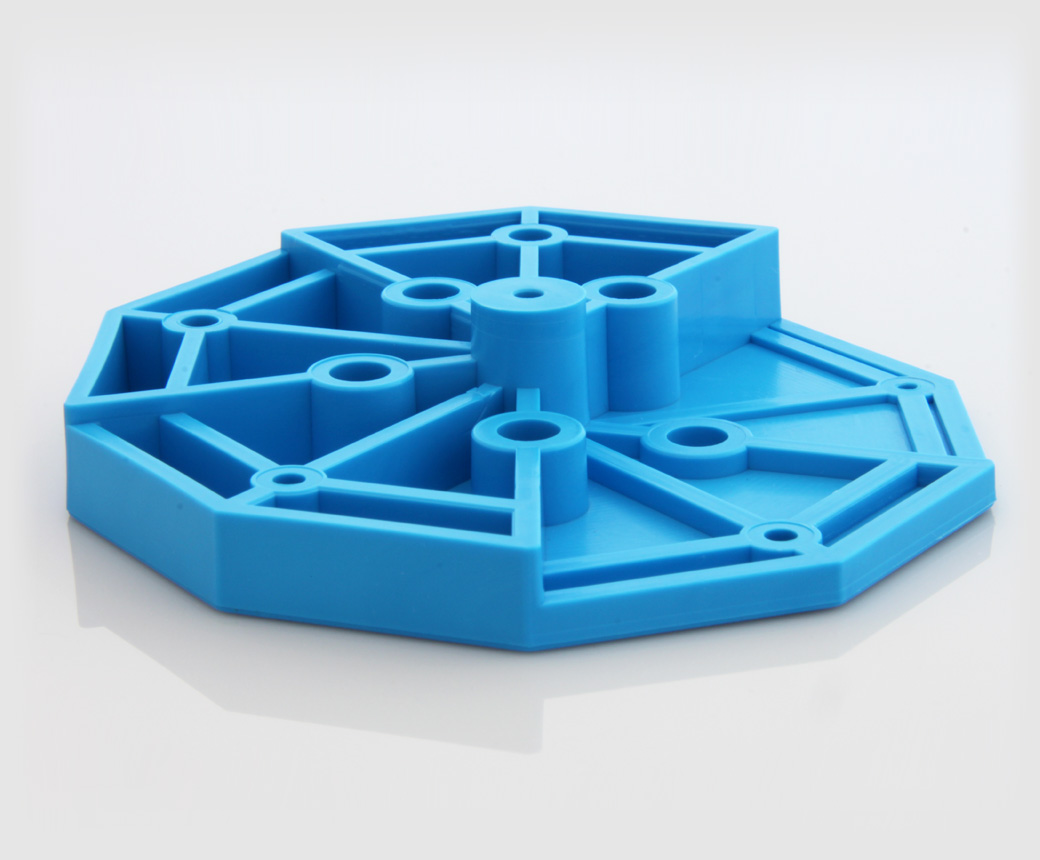

The Soko Helical is an extremely versatile mounting platform for gauges & tools when setting up RC helicopters.

The Soko Helical is ideal for anyone who already owns a gauge or needs to mount other tools.

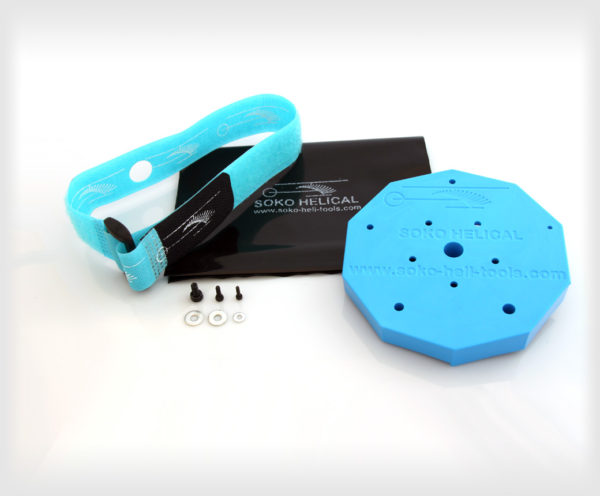

Shipping includes:

1x Soko Helical
1x M1.6x6mm hex screw
1x M2x6mm hex screw
1x M3x6mm hex screw
1x M2 washer
2x M3 washer
1x Special mounting velcro
1x storage bag

 Details about the Soko Helical:

The Soko Helical can be mounted on any RC heli in a blade grip (main and tail) with the following dimensions:

• blade grip opening 3mm, screw M2 (equals main blade grips for standard 250 size)
• blade grip opening 4.5mm, screw M3 (equals main blade grips for standard 450 size)
• blade grip opening 10mm, screw M3 (equals main blade grips for standard 500 size)
• blade grip opening 12mm, screw M4 (equals main blade grips for standard 550/600 size)
• blade grip opening 14mm, screw M5 (equals main blade grips for standard 700 size)

 The Soko Helical is designed to be mounted as a head stopper disc:

• for a M1.6 head stopper screw (standard 250 size)
• for a M2 head stopper screw (standard 450/500 size)
• for a M3 head stopper screw (standard 550/600/700 size)

To mount any  gauge or tools, mounting velcro is included. Additionally, the Soko Helical provides special holes to securely mount the Soko Gauge.
