Description

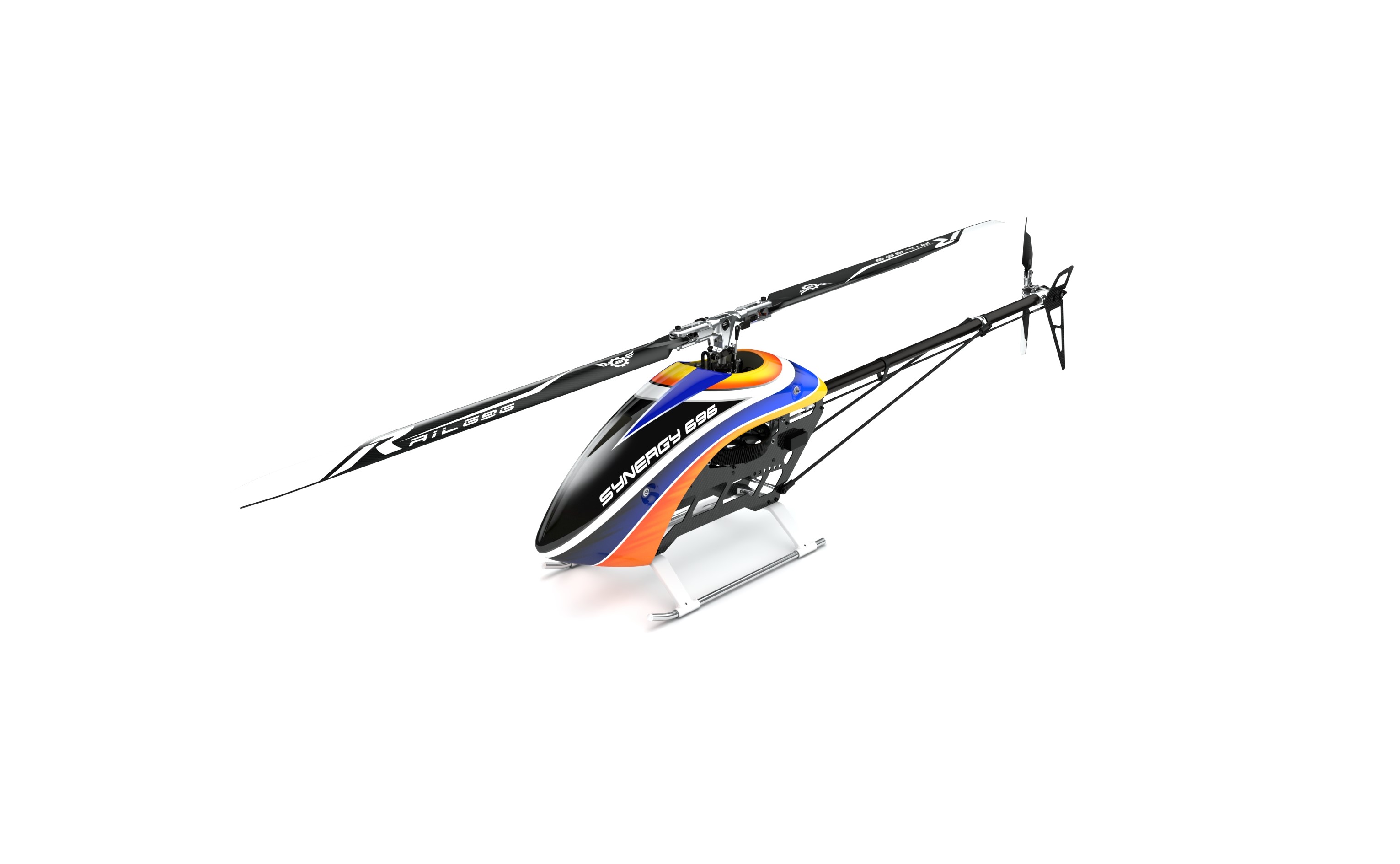

Introducing the long awaited and much anticipated Synergy 696
Features:
- CNC machined 6061-T6 aluminum and Delrin components
- 2mm Carbon Fiber frame components
- 182mm full head width
- Extra wide head block for quick cyclic response and high stability
- Machined Delrin helical main drive for quiet, efficient power transfer
- Machined Delrin helical tail drive
- One-piece aluminum front tail transmission
- Efficient torque tube tail drive
- 12mm main shaft with triple support radial bearings
- 10mm head axle with pivot rocker and quad progressive dampers
- 6mm tail shaft with HD tail hub and HD grips
- Turnbuckle linkages for quick/precise adjustments
- CG adjustable Quick-Change locking battery tray system
Specifications:
- Motor: 700 class electric
- Main Blades: 696-716mm
- Tail Blades: 106-116mm
- Cyclic/Tail Servos: Full Size HV
- Main Ratio: 9.93-11.58 (13T included; 10.69:1)
- Tail Ratio: 4.70-5.08:1 (27T included; 4.70:1)
- Main Rotor Diameter: 1574mm (with Rail 696mm)
- Tail Rotor Diameter: 298mm (with Rail 116mm)
Zen Recommended Equipment:
- Cyclic servos: BK HV 7001/7002 or 7003 full size
- Tail servo: BK HV 7005/7006 or 7007 full size servo
- Flybarless system: Ikon2/CGY750/760
- Main blades: Rail 696mm
- Tail blades: Rail 106-116mm
- Stock 13T pinion: 1950-2150 RPM
- Stock 27T tail drive
- Motor: Scorpion Xnova 4525-530 or larger
- ESC: Hobbywing 130A Platinum
- All high-voltage capable servos powered via internal ESC BEC
- Flight battery pack: 4400-5000 12S
