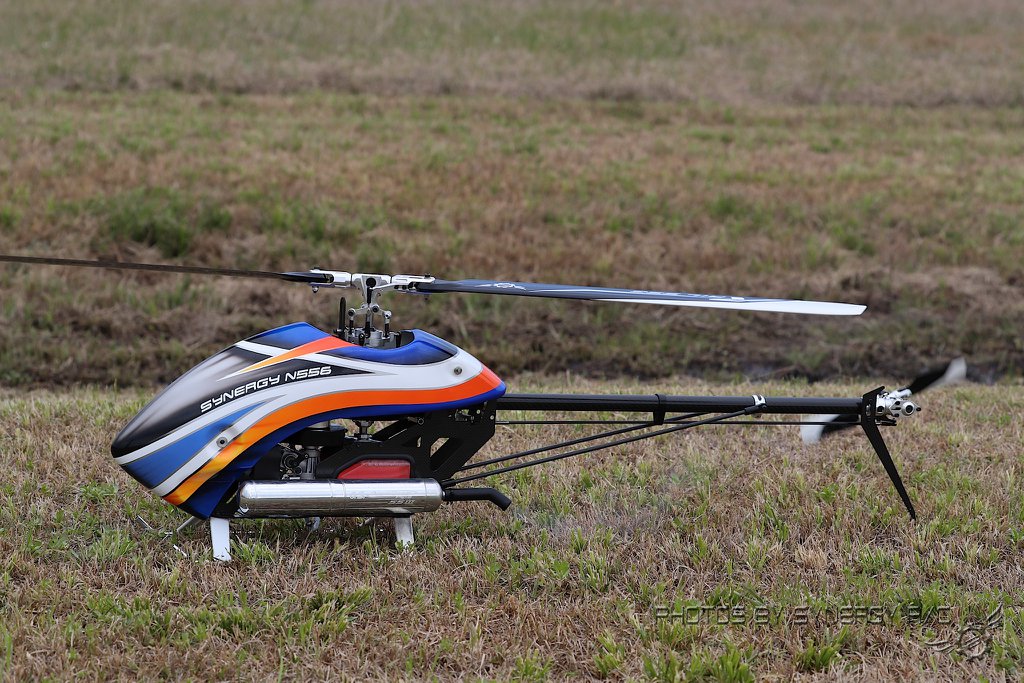

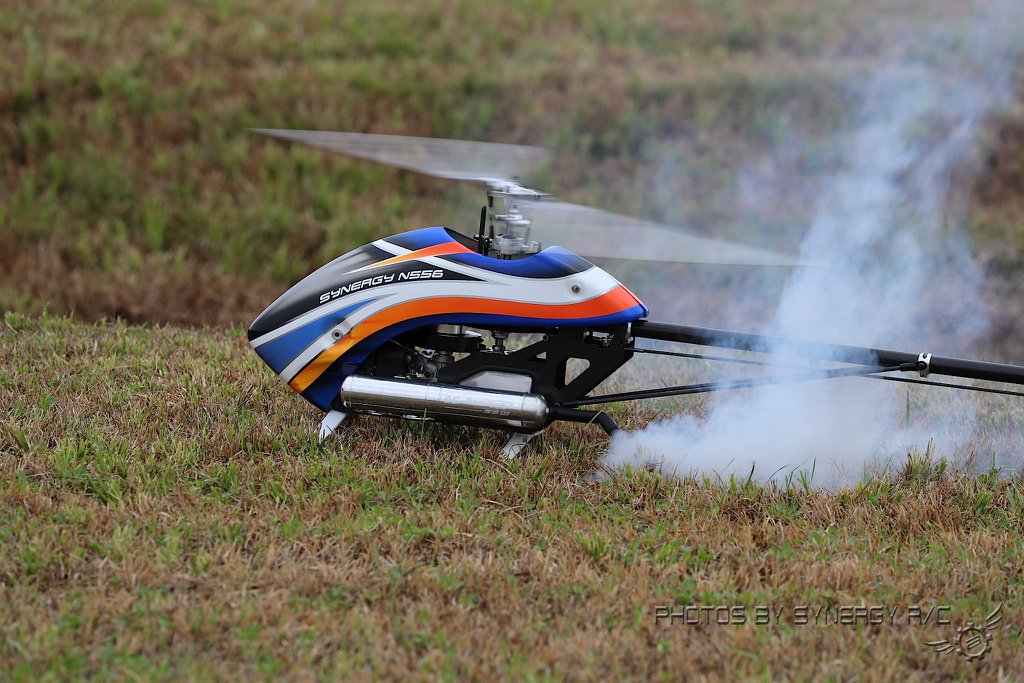

Synergy N556 Nitro Kit

Description

Synergy N556 Kit

Features:

• CNC machined 6061-T6 aluminum and Delrin components
• 2mm Carbon Fiber Frame components
• 140mm full head width
• Extra wide head block for quick cyclic response and high stability
• 2450 RPM head speed for maximum performance
• Machined Delrin helical main drive for quiet, efficient power transfer
• Machined Delrin helical tail drive
• One-piece aluminum front tail transmission
• Efficient torque tube tail drive
• Fuel tank located under main shaft for consistent CG
• 10mm main shaft with triple support radial bearings
• 8mm head axle with pivot rocker and solid dampers
• 6mm tail shaft with HD tail hub and HD grips
• Turnbuckle linkages for quick/precise adjustments

Specifications:

• Motor: 55 class nitro engine
• Main Blades: 550-556mm (stretchable to 606mm)
• Tail Blades: 95-96mm
• Receiver Battery: 2S 2000-2800mAh
• Cyclic/Tail/Throttle Servos: Full Size
• Main Ratio: 7.44-8.5 (16T included; 7.44:1)
• Tail Ratio:  4.37-4.5:1 (35T included; 4.37:1)
• Main Rotor Diameter 1252mm (with Rail 556mm)
• Tail Rotor Diameter 238mm (with Rail 96mm)
• Fuel Tank Capacity: 14oz

Official Synergy Recommended Equipment:

This is the exact equipment tested and proven in the Synergy N556, results may vary if equipment outside of this recommendation is used.

• Cyclic Servos – Futaba BLS272 / MKS 1240 / BK7002HV
• Tail Servo – Futaba BLS256 / BLS276 / MKS HBL980 / BK7006HV (760us tail servo is highly recommended)
• All HV Servos (no regulator)
• Motor – OS 55HZR
• Muffler – OS PowerBoost III
• Cool Power 30% Nitro Fuel
• FBL System – CGY750
• Main Blades – Rail 556mm
• Tail Blades – Rail 96mm
• Head speed: 2450 RPM
• Receiver Battery: 120g or less
