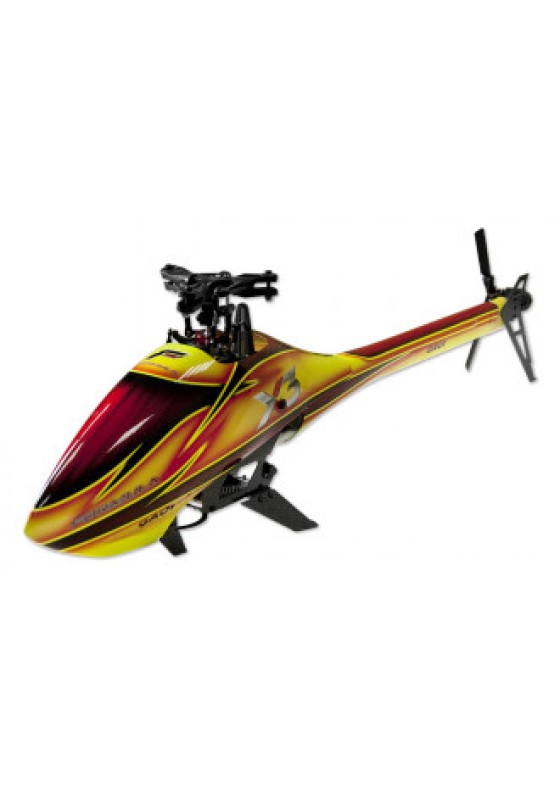

GAUI X3L Kit (3-Blade version)

Description

GAUI X3L Basic Kit (3-Blade version)

Specifications:

●Overall Length (with Canopy): 709mm
●Main rotor diameter: 812mm (Main Blades 360mm) 862mm (Main Blades 385mm)
●Main blade length: 325~360 mm
●Overall Height: 208mm
●Overall Width: 87.8mm
●Tail Blade Length: 62 mm
●Tail Rotation Diameter: 172mm
●ESC: Minimum 50A ESC
●LiPo battery: 1300~ 1800 mAh
●BL Motor : 2520 / 3226
●Total weight: 575g ±3% (kit with canopy,w/o all electronics, blades and batteries.)

Gear Ratio

• 12T ( 10.91 : 1 : 5.46 )
• 13T ( 10.07 : 1 : 5.46 )

Required For Operation:

• Transmitter(6-channel or more, helicopter system)
• Receiver(6-channel or more)
• CCPM Servo x3  / Tail Servo x1
• LiPo Battery :3S & 6S
• ESC: 50A+ ESC recommended
• 3 Blades CF main blades(325~360mm)
• Flybarless System
• 12~13T Pinion Gear
• BL Motor : 2520 – 3226

Tools and Equipment for Assembly

• 1.5 mm Hexagon Screw Driver
• 2 mm Hexagon Screw Driver
• 2.5 mm Hexagon Screw Driver
• Philips Screw Driver
• Lubricant / one-way bearing grease
• Spring calipers, Needle-nosed pliers
• General thread lock

Basic kit does not include motor or blades.

The available pinions for X3 are as follows (Pinion 12T~13T) with drive gear ratio below:
12T 10.91 : 1 : 5.46
13T 10.07 : 1 : 5.46
