XNOVA 4020-1350KV 1.5Y shaft type – D

Description

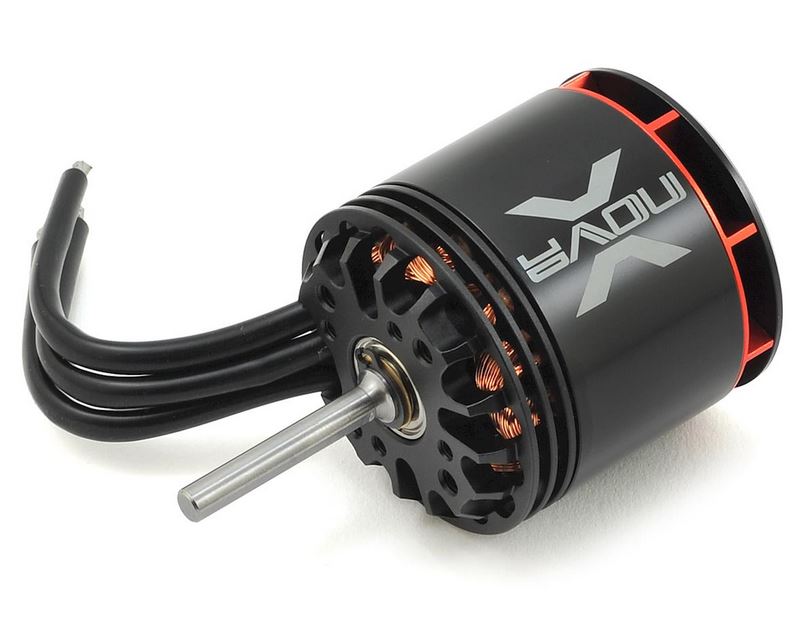

This is the Xnova 4020-1350KV 1.5Y Brushless Motor with a 5mm “Type D” 32mm Shaft. This high performance brushless motor has the best power to weight ratio of the Xnova 4020 line. This is an ideal option for the Synergy 516 helicopter and is a great choice for Intermediate to Hard 3D flying styles.

Features:

• “D Shaft” 32mm long, 5mm diameter
• Ideal for Synergy 516
• Good for hard 3D
• Best power to weight ratio
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Marked leading high efficiency up to 92%
• Superb quality and machining of CNC parts

Specifications

• Slots & Poles: 24n8p
• Winding T: 1.5Y
• rpm/V: 1350
• Weight (without connector): 336g
• Body Length (no shaft): 50.75mm
• Diameter: 49.5mm
• Shaft Length: 32mm
• Shaft Diameter: 6mm
• Mounting Holes CTC Distance: 25mm
• Mounting Screw: 4* M3
