Description

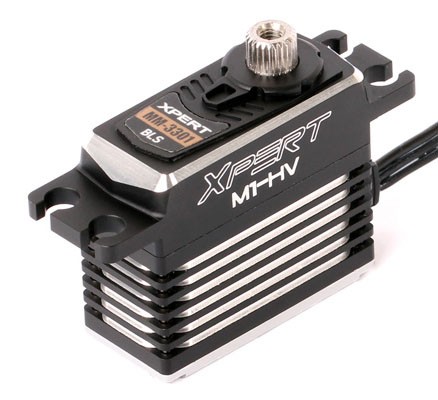

Xpert HV Mini Size Brushless Cyclic Servo model: MM-3301-HV(M1)
Features
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- Full aluminum case design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Mini |
| Product Name | MM-3301-HV(M1) |
| Part Name | MM-3301-HV(M1) |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .084 sec/60° @7.4V: .068 sec/60° @8.4V: .06 sec/60° |
| Torque (oz/in) | @6.0V: 141.85 oz-in @7.4V: 174.89 oz-in @8.4V: 198.48 oz-in |
| Torque (kg/cm) | @6.0V: 10.22 kg-cm @7.4V: 12.60 kg-cm @8.4V: 14.30 kg-cm |
| Dimensions | 33.6x15x29.5 mm |
| Weight | 40.5 g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520 μs |
| Applications | Helicopter / Airplane |
