Description

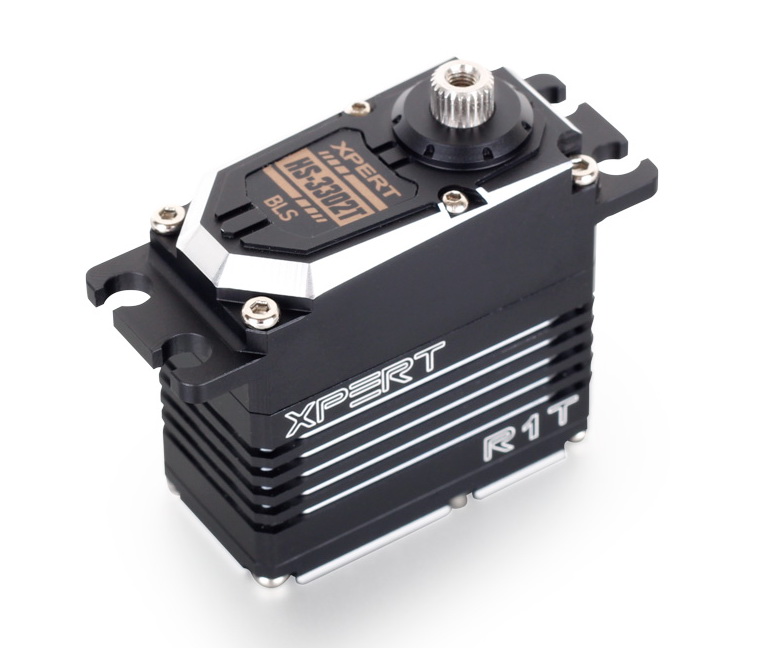

Xpert R1 HS-3302T HV Full Size Tail Servo
Features
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design.
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gears.
- Glitch-free.
- Sophisticated error correction.
- High-Speed, High-precision 12-bit AD converter and CPU calculation.
- Fail safe.
- Over current protection.
- Over temperature protection.
- Start sonorant.
- 760us narrow band.
- Operating frequency up to 800Hz
Specifications
- Operation Voltage: 6V – 8.4V
- Frequency Range: 760us / 800Hz
- Weight: 72g

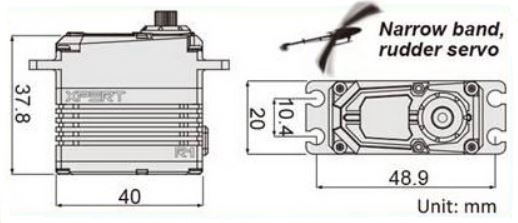

- Dimensions: 40 x 20 x 37.8 mm
- Gear Type: Metal
- Motor Type: Brushless
Speed
- 0.056 sec/60 @6.0V
- 0.045 sec/60 @7.4V
- 0.040 sec/60 @8.4V
Torque
- 12.00 kg/cm @6.0V
- 14.80 kg/cm @7.4V
- 16.80 kg/cm @8.4V
