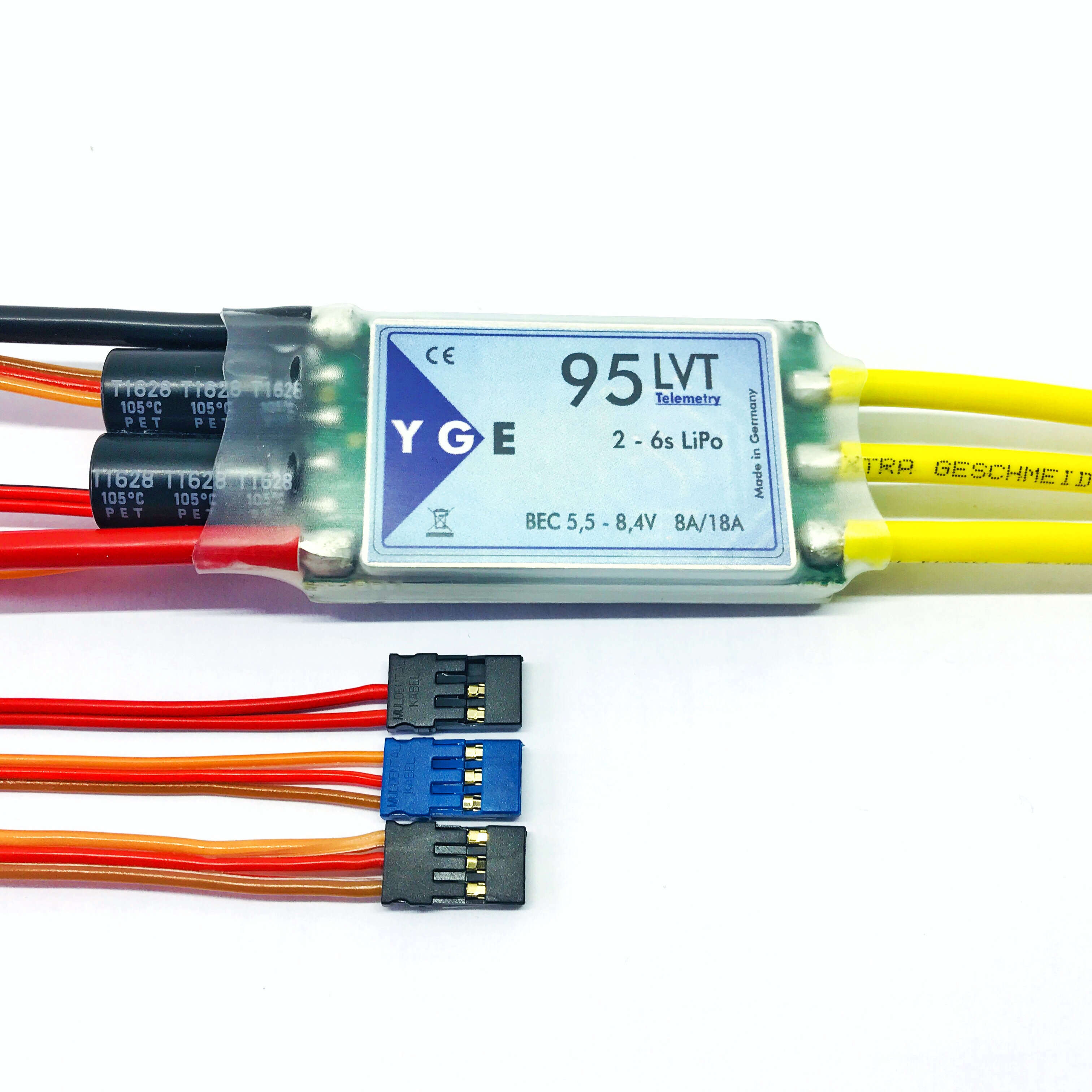

YGE 95A LVT ESC (w/BEC) 2s-6s LiPo

Description

• Update capable (optional USB-Adapter available)
• entirely overhauled hard- und software (32-bit)
• PWM-frequency will be set automatically to the requirements of the motor
• Current-limitation
• 2 to 6S LiPo
• super smooth sinus-startup
• adjustable HV-BEC from 5,5 to 8,4V
• high BEC-current rating: 8A permanent / 18A peak
• dimensions in mm: 78 x 32 x 15
• weight with / without cables: 63g / 93g
• basic settings via mode-setup
• BEC- and Telemetry-settings, as well as additional parameters adjustable via PC-Software (optional USB-adapter available)

Currently supported protocols:

• Jeti ExBUS
• Multiplex Sensor BUS V2
• Mikado Vbar Control
• Graupner HoTT V4
• YGE-Protocol for more telemetry-connections for exapmple via S32 (new Jlog) or Spirit

more protocols to be added soon…

All information such as as current, voltage, capacity, RPM, temperature etc. will be transferred to your transmitter. The amount of data and the characterisation depends on your transmitter/receiver.

Download the manual here
