Description

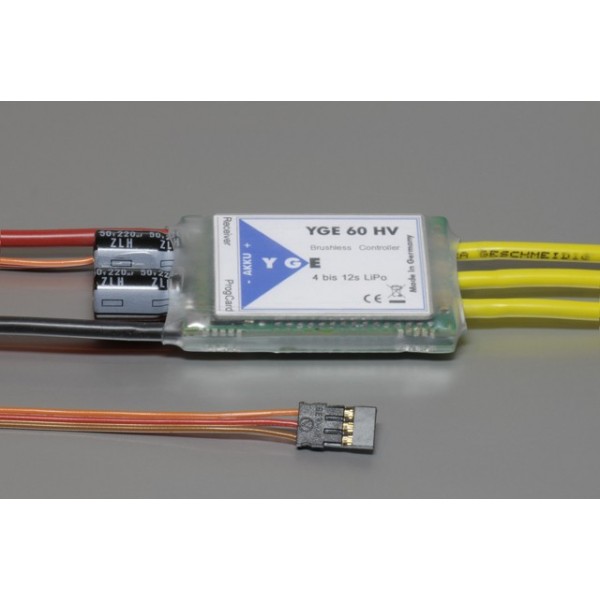

YGE ESC for Helicopters up to 12S.
German engineering and quality.
Governor mode allowing low and high rpm flight conditions with the same pinion. A 1 to 2 ratio is easily achievable allowing full benefit of the excellent low rpm capabilities of many flybarless modules.
– 60A maximum continuous full power current with adequate cooling.
– 3 to 12s LiPo, with under voltage protection by power reduction.
– 12 to 36 cells NiMH, with under voltage protection by power reduction.
– disconnectable under voltage detection.
– optocoupler.
– Speed regulation (Governor mode).
– Soft start.
– Active free-wheel, allowing unlimited part load operation.
– Automatic or 6 step adjustable timing.
– Continuously adjustable F3A brake.
– 3 step adjustable regular back EMF brake.
– Switching rate: 8 to 16 kHz
– Speed limit: 240,000 RPM (2-Pole motors)
– Temperature and overload warning.
– Anti sparking circuit: reduces connection sparking
– Programming with the ProgCard II or III
– Weight 37g, 49g with cables
– Dimension 67mm x 31mm x 11mm
