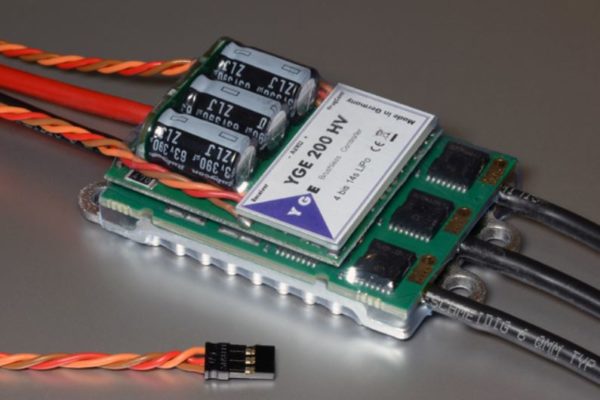

YGE ESC 200A HV V5 (Opto) 4s-14s LiPo

Description

YGE 200AHV  V5 Speed Controller Specifications:

– The specified current is the maximum continuous full power current.
– 4 to 14s LiPo, with under voltage protection by power reduction.
– 12 to 42 cells NiMH, with under voltage protection by power reduction.
– Dis-connectable under voltage detection.
– Optocoupler. Receiver Battery can be used up to 9V.
– Speed regulation (Governor mode).
– Soft start.
– Active free-wheel, allowing unlimited part load operation.
– Automatic or 6 step adjustable timing.
– 3 steps adjustable regular back EMF brake.
– Switching rate: 8 to 16 kHz
– Speed limit: 240,000 RPM (2-Pole motors)
– Temperature and overload warning.
– Anti sparkling circuit, decreases the power on spark.
– Programming with the ProgCard II or III
– Overall dimensions in mm: 89 x 52 x 28
– Weight in g without/with wires: 137 / 189
– Cable diameter Battery/Motor: 6² / 6²
