Description

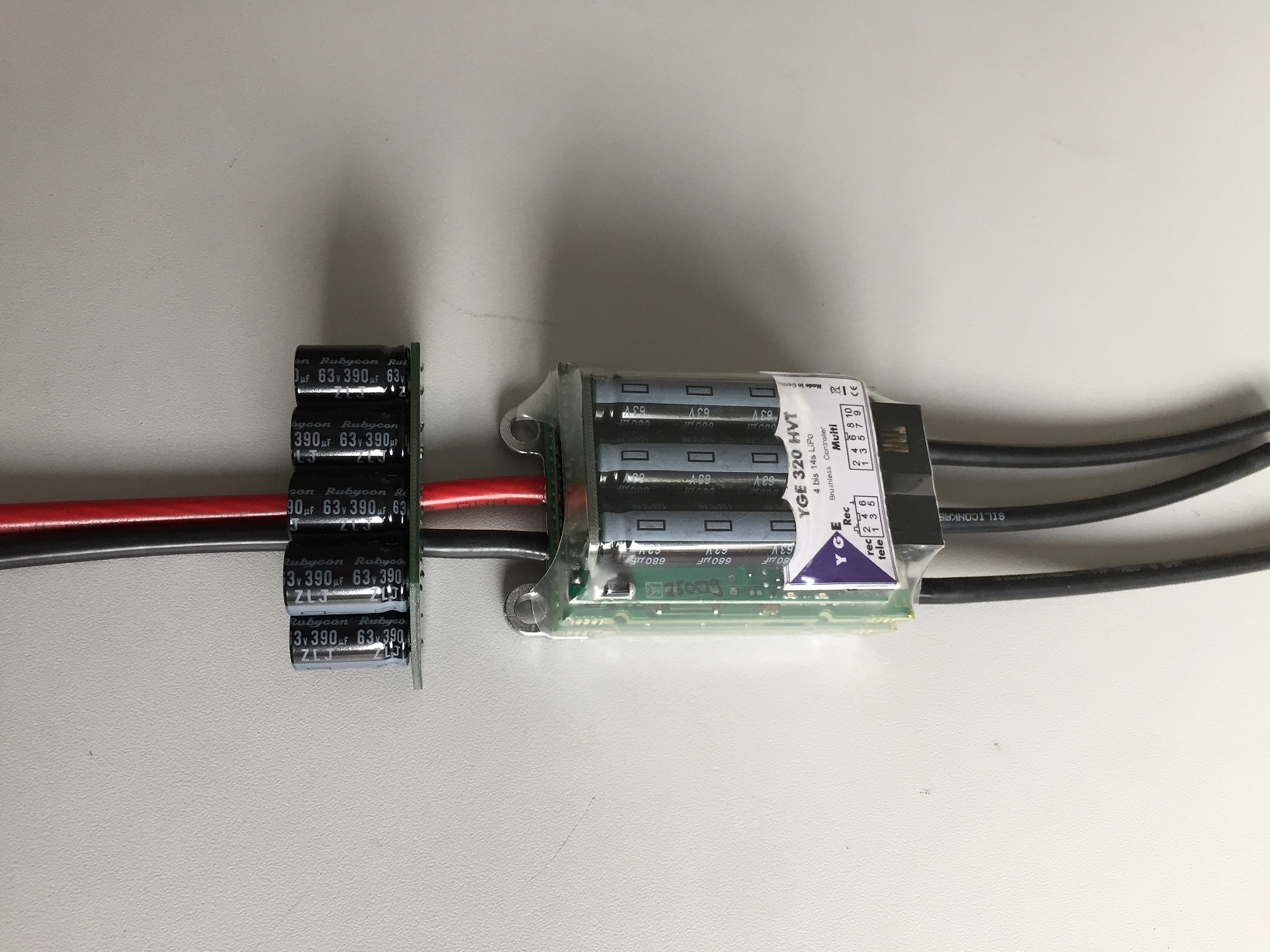

YGE ESC 320HVT (Opto) 4s-14s LiPo
The latest 320 HV ESC from YGE with Telemetry
Technical Data
- Max continuous current 320A
- 4 to 14s LiPo, incl under voltage protection by power reduction
- 5 to 16s LiFePo4, incl under voltage protection by power reduction
- Current limiting
- Disconnectable under voltage detection
- In built Govenor or compatible with external Govenors (eg Vbar)
- Soft start
- Active free-wheel, allowing unlimited part load operation.
- Automatic or 6 step adjustable timing
- Adjustable EMK brake
- F3A Acro brake (brake force control infinitely adjustable)
- Frequency: 16 to 32 kHz
- Speed limit: 240.000 rpm (2- Poles)
- Temperature and overload warning
- Anti flash: decreases the closing spark (Anti Spark)
- Basic Programming with mode programming
- Fine adjustment and selection of telemetry log with the PC Setup
- Suitable USB adapter optionally available
General
- Dimensions: 72 x 53 x 39 (mm)
- Weight without / with wires: 198 / 168 (gm)
- Cable diameter Battery / Motor: 8² / 8²
Currently supported protocols:
- Jeti ExBUS
- Multiplex Sensor BUS V2
- Mikado Vbar Control
- Graupner HoTT V4
- YGE-Protocol for more telemetry-connections for exapmple via S32 (new Jlog) or Spirit
more protocols to be added soon…
All information such as as current, voltage, capacity, RPM, temperature etc. will be transferred to your transmitter. The amount of data and the characterisation depends on your transmitter/receiver.
