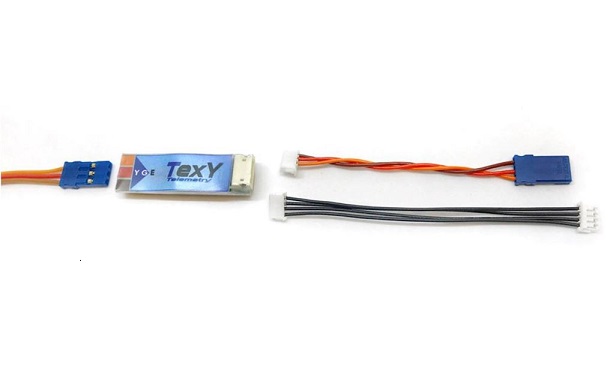

YGE TexY Telemetry Adapter

Description

Use the Texy Telemetry adapter for YGE “T” series ESCs to add support for Futaba, Spektum Powerbox Core and FrSky radios. The Texy interface allows all useful data to be sent back to the pilot. For example, when using FrSky radios, the following information is sent using the 2.4 Ghz link back to the transmitter for logging and display:

• Battery Voltage
• Battery Current
• RPM
• Battery capacity used
• Throttle setting (0% – 100%)
• PMW received
• Output FET transistor temperature in °C
• BEC temperature in °C if available
• BEC Voltage if available
• BEC Current if available

Note: Texy is only of use to customers with Futaba, Spektum, Powerbox Core and FrSky radios. It does not add any functionality for other radio protocols

Weight: 3g
Dimensions: 39 x 12 x 9mm

Download here:

Futaba Manual

Spectrum Manual

FrSky Manual
